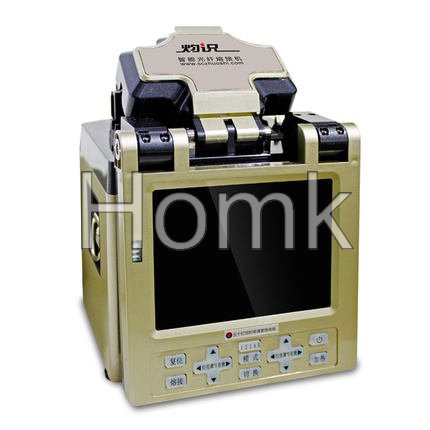

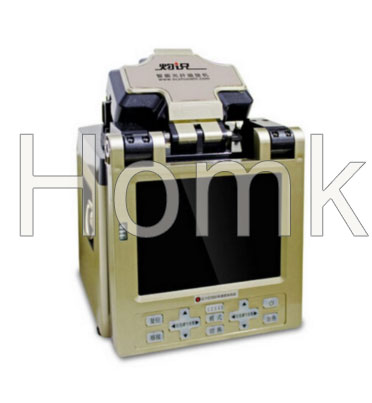

AI-6 Fiber Fusion Splicer
Features
1.The advanced core to core fiber profile alignment system(PAS)
2.Friendly smart GUI
3.X/Y axes were displayed meanwhile, Magnification up to 304 times
4.8 Sec. splice time , 25 Sec. tube-heat time
5.Hig High-resolution true color 5.7 inch LCD display
6.Four display modes, fiber core visible
7.Store 4000 groups of splice results
8.Four display modes, fiber core visible
9.USB interface - for updates + result transfers
10.Built-in high capacity battery, support 300 times splicing and heating, to meet one days’ work
11.Long Electrode Lifetime, up to 4000 times
12.Three Splicing modes: auto, half-auto, manual
13.Close shield splice automatically, Close heater lid heat automatically
14.One year Warranty
Specification:
| Applicable Fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZ-DS(ITU-T G.655),EDF |
| Cladding Diameter | 100 to 150μm |
| Coating Diameter | 100 to 1000μm |
| Fiber Cleaved Length | 8~22mm (standard) |
| Splicing Mode | Auto & Manual |
| Average fusion loss | 0.02dB(SM), 0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return loss | ≥60dB |
| Interface | RS232 |
| Record Capacity | 8000 results |
| Working environment | -25 ~ +50(Temperature), 0 ~95%RH(nocondensation) |
| Altitude | 0~5000m(altitude) |
| Storing environment | -40 ~ +80(Temperature), 0 ~ 95%RH(no condensation) |
| Protection sleeve length | 20mm,40mm,60mm |
| Tension test | 2.0N(standard) |
| Language | English, Chinese, Russian, Spanish, French, Korean |
| Power Supply | AC adaptor: 85~260V input voltage Internal battery: 12V voltage, 10Ah, up to 200 times of continuous splices and heats DC adaptor: 12V voltage |
| Dimensions | 170(W)×140(H)×170(D)mm |
| Weight | 3.3Kg |
