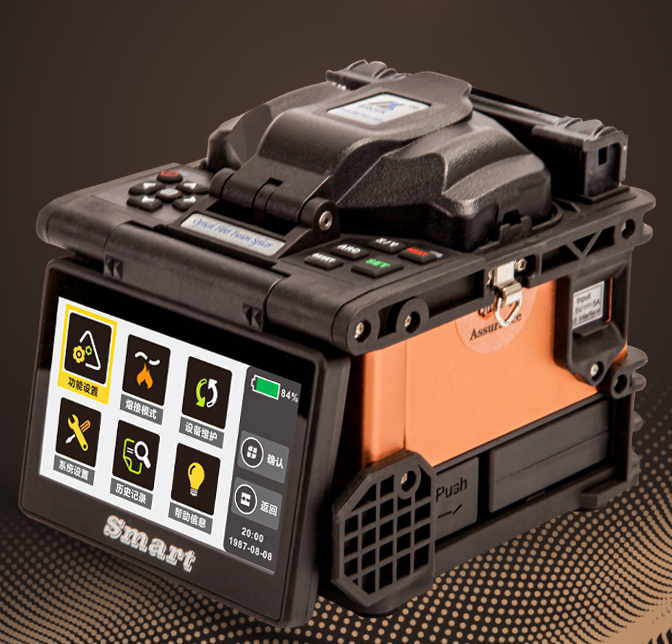

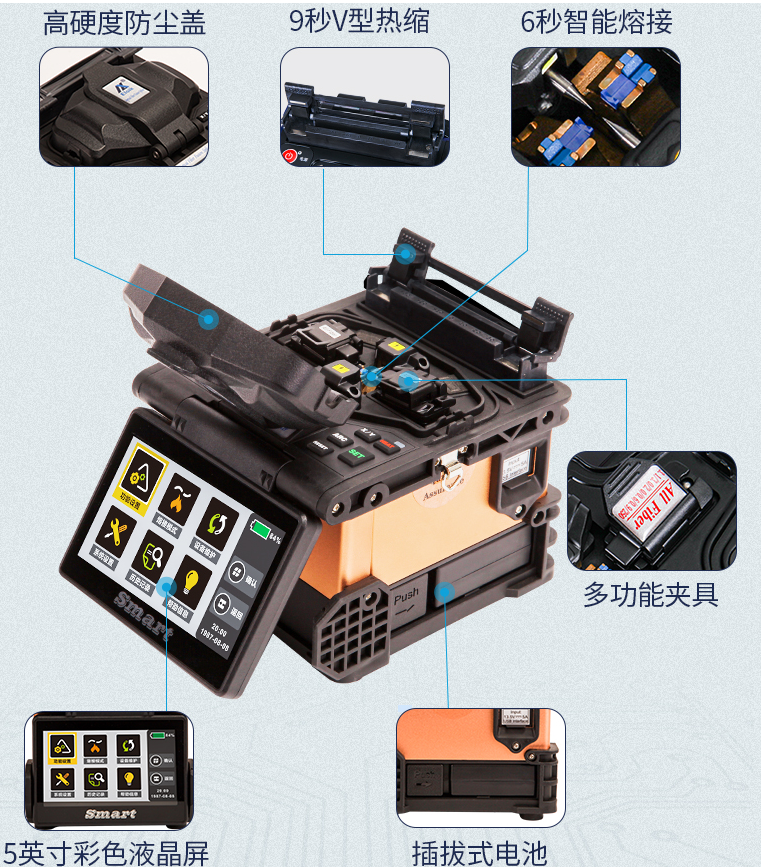

HOMK TOP1 FUSION SPLICER WITH 6 MOTORS,HIGH SPEED
| Size & Weight | D166xW144x H158(mm),2.0kg without battery， 1.91kg with 6800mAh |
| Fiber alignment | 6 motors core alignment Core/cladding alignment / Manual alignment |
| Fiber type | SM(ITU-T G.652). MM(ITU-T G.651). DS(ITU-TG.653). NZ/NZDS(ITU-T G.655). BI(ITU -T G.657),UI,EDF |
| Splice mode | Single fiber |
| Fiberdiameter | Cladding diameter 80-150μm,coating 100-1000μm |
| Cleave length | Coating less than 250µm：8-16mm Coating less than 250-1000µm:16mm |
| Splicing programs | Max.10000 |

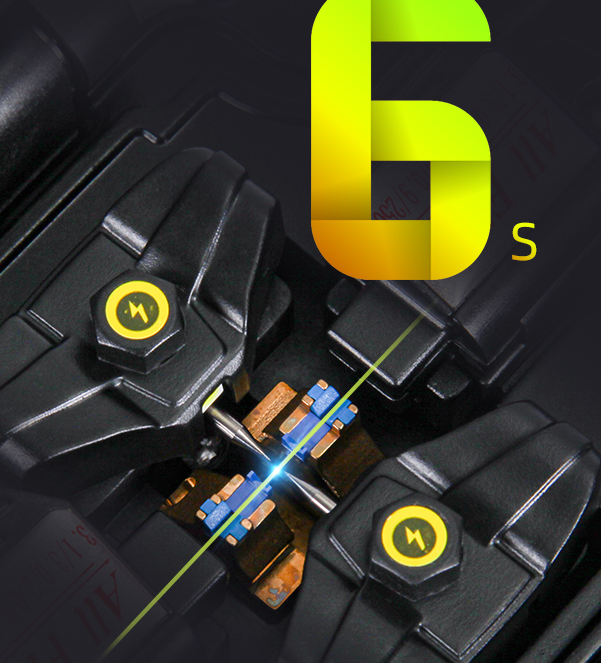

| Splicing cycle time | 6 sec. Imported tungsten steel electrode rod |
| Heating programs | Max.30 |
| Heating cycle time | 9 seconds V-type heat shrink, integrated V-type heating furnace, improve heating efficiency, reduce waiting time |
| Splice protector | 10-60mm |
| Splice image capture | Max.30 |
| Splice data storage | Max.3000 |
| Splice loss | SM:0.02dB, MM:0.01 dB, DS:0.04dB,NZ/NZDS:0.04dB, BI:0.02dB |
| Return loss | >>60dB |
| Loss estination | Provided |
| Operation condition | Altitude 0- 5000m, HumidilyO- 95%,Temperature -10-+50"C, Wind velocily up 10 15m/s |
| Storage conditlon | Humidity 0-95%, Temperature -40-+80'C(Battery -10-+40) |
| Tension | 1.96-2.25N |

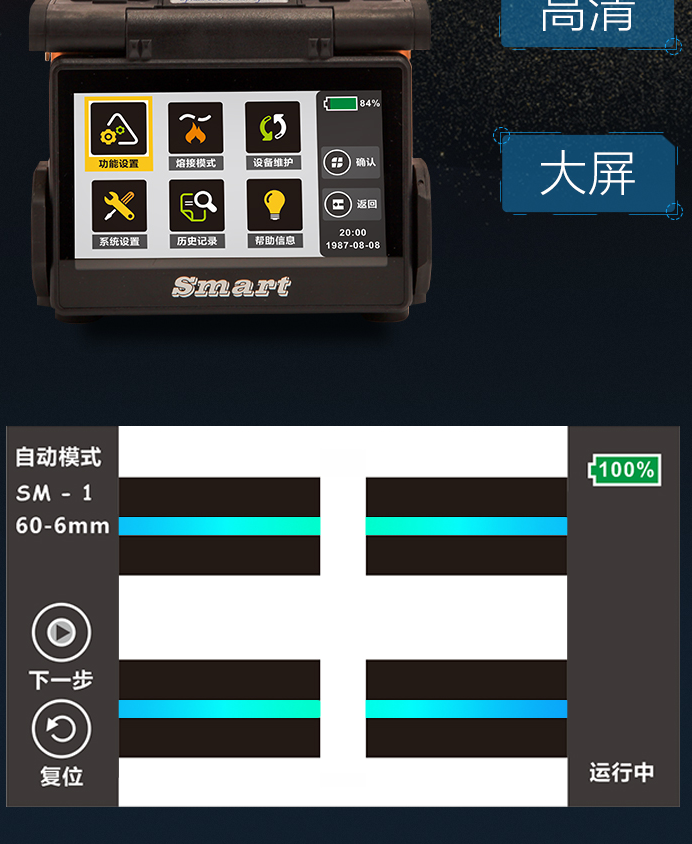

| Fiberview | 400x cameras observation,5 inch color screen LED double white light |
| Fiber magnification | 300x to X or Y single axis view,180x for both X&Y dual axis view |
| Port | High speed USB, used for PC software connection and firmware upgrade |
| Electrode life | 3500 arc discharges |
| Power supply | AC100-240V, 50/60Hz |
| Battery module | 6800mAh High Capacity battery,more than 320 times splicing and heating |
