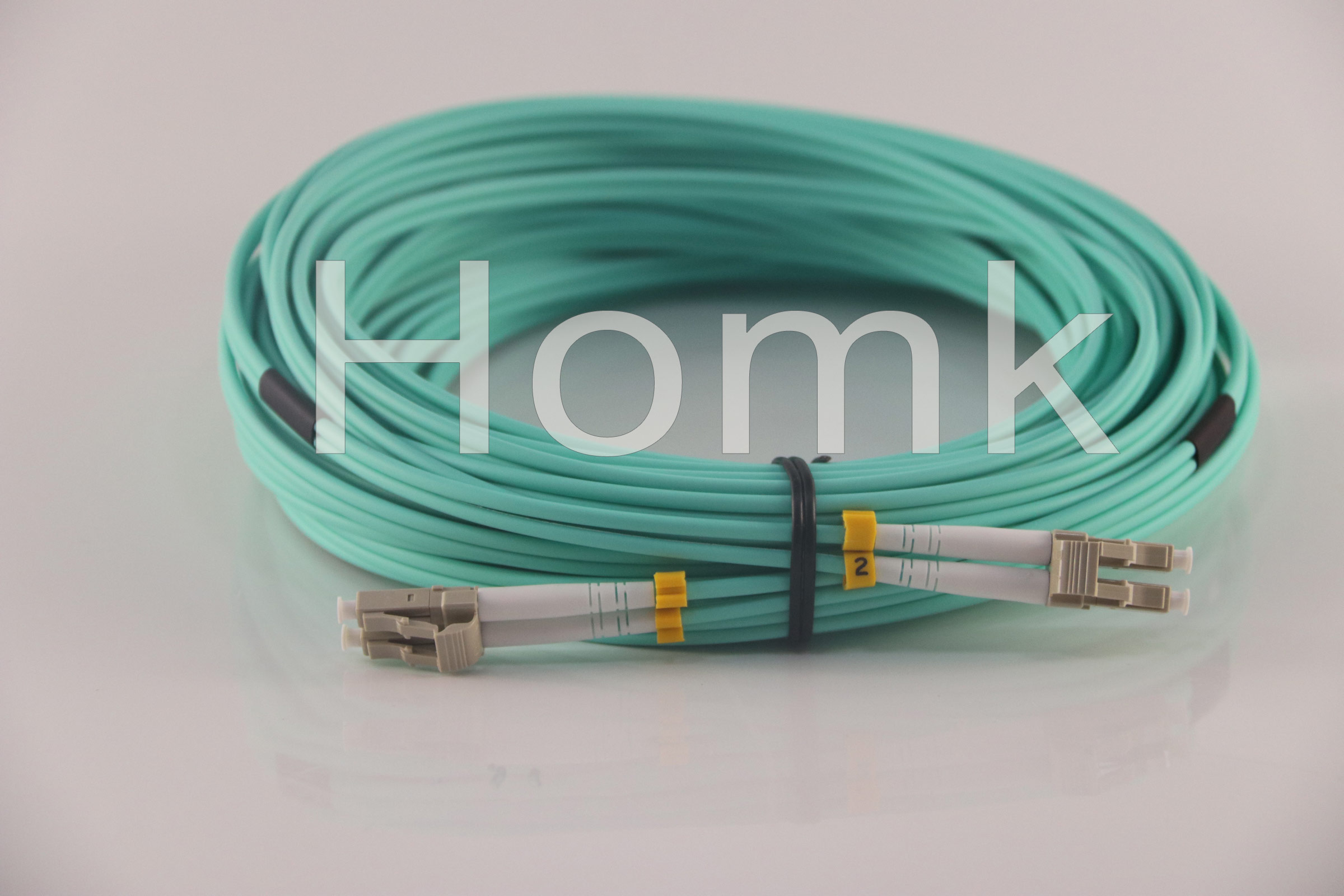

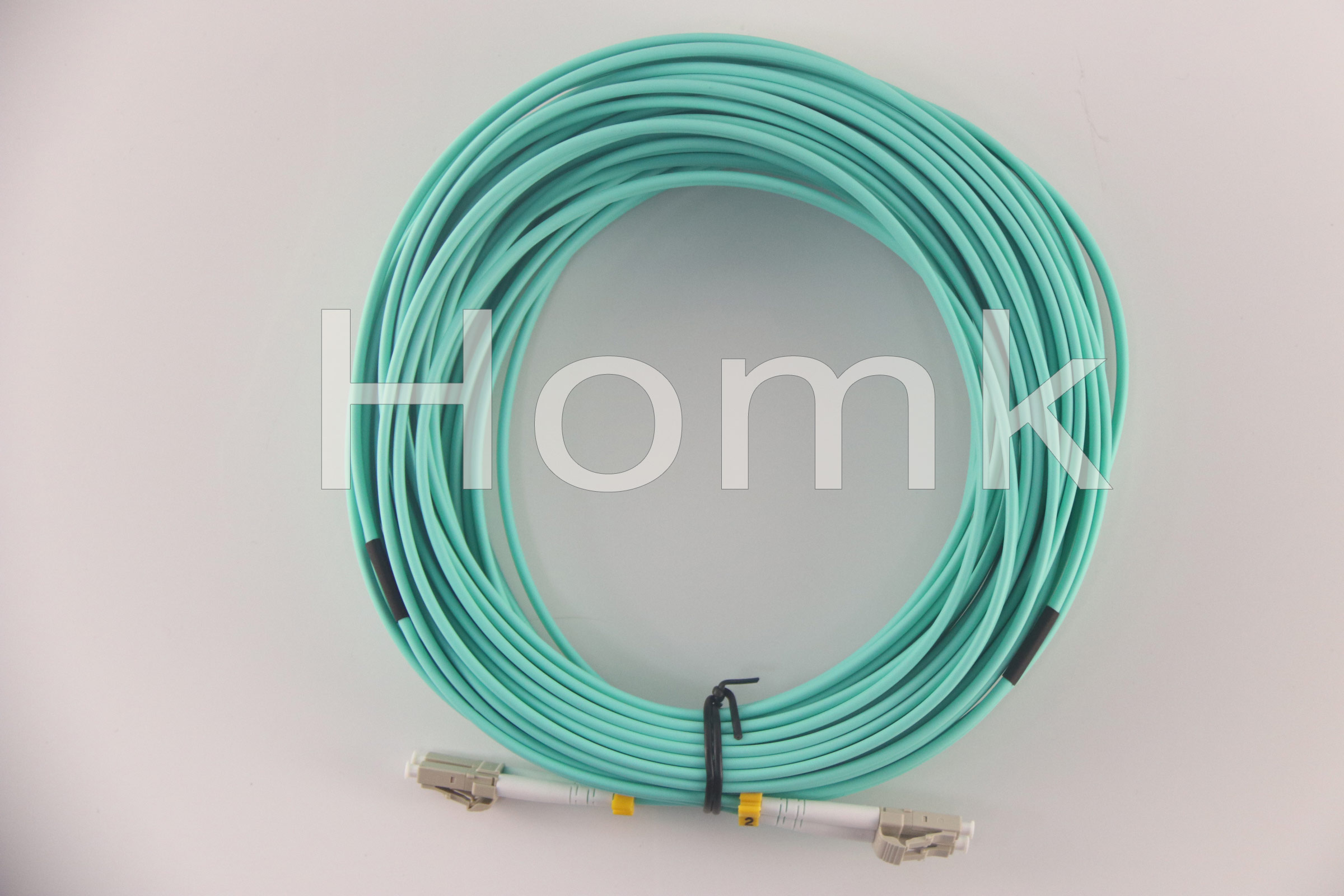

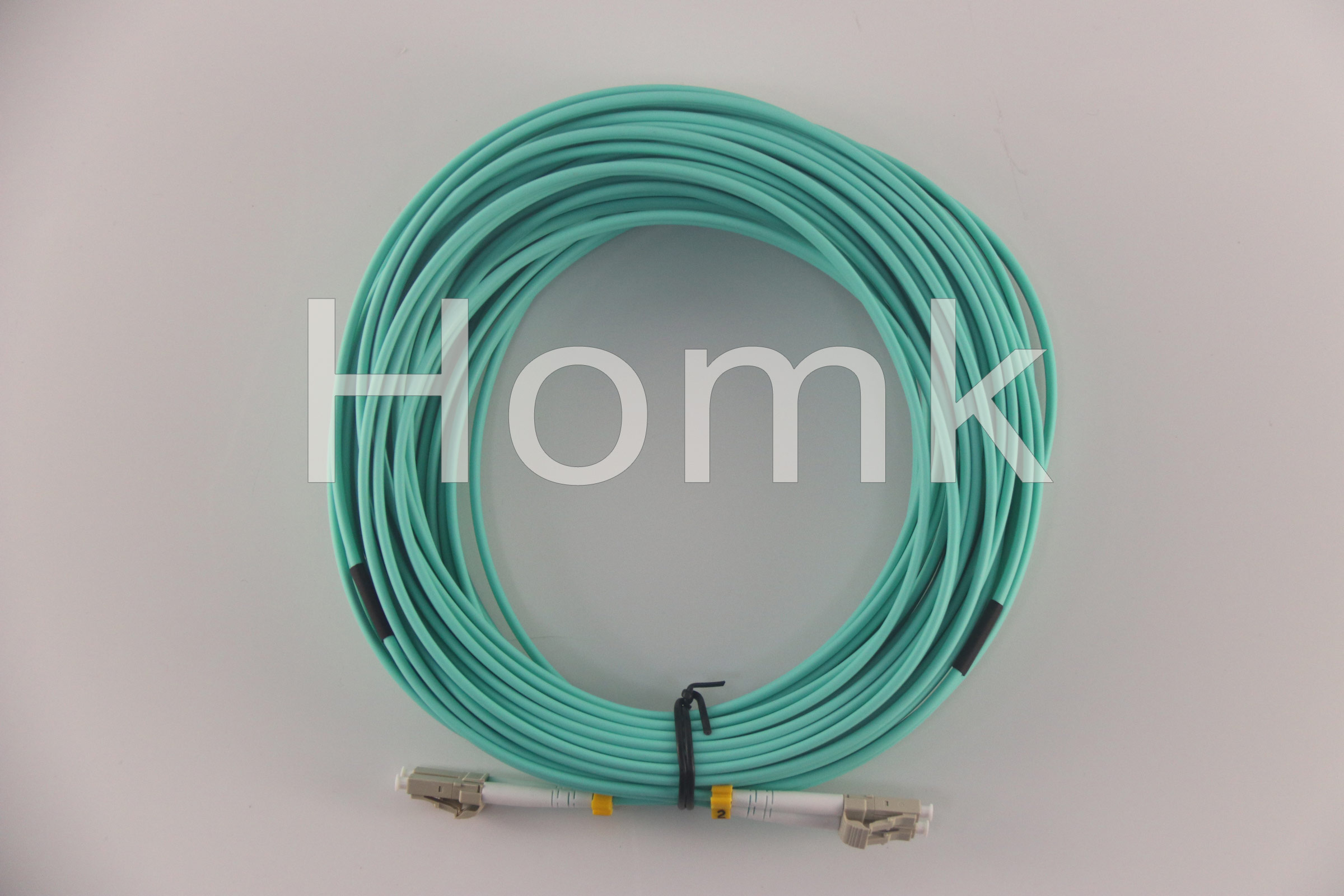

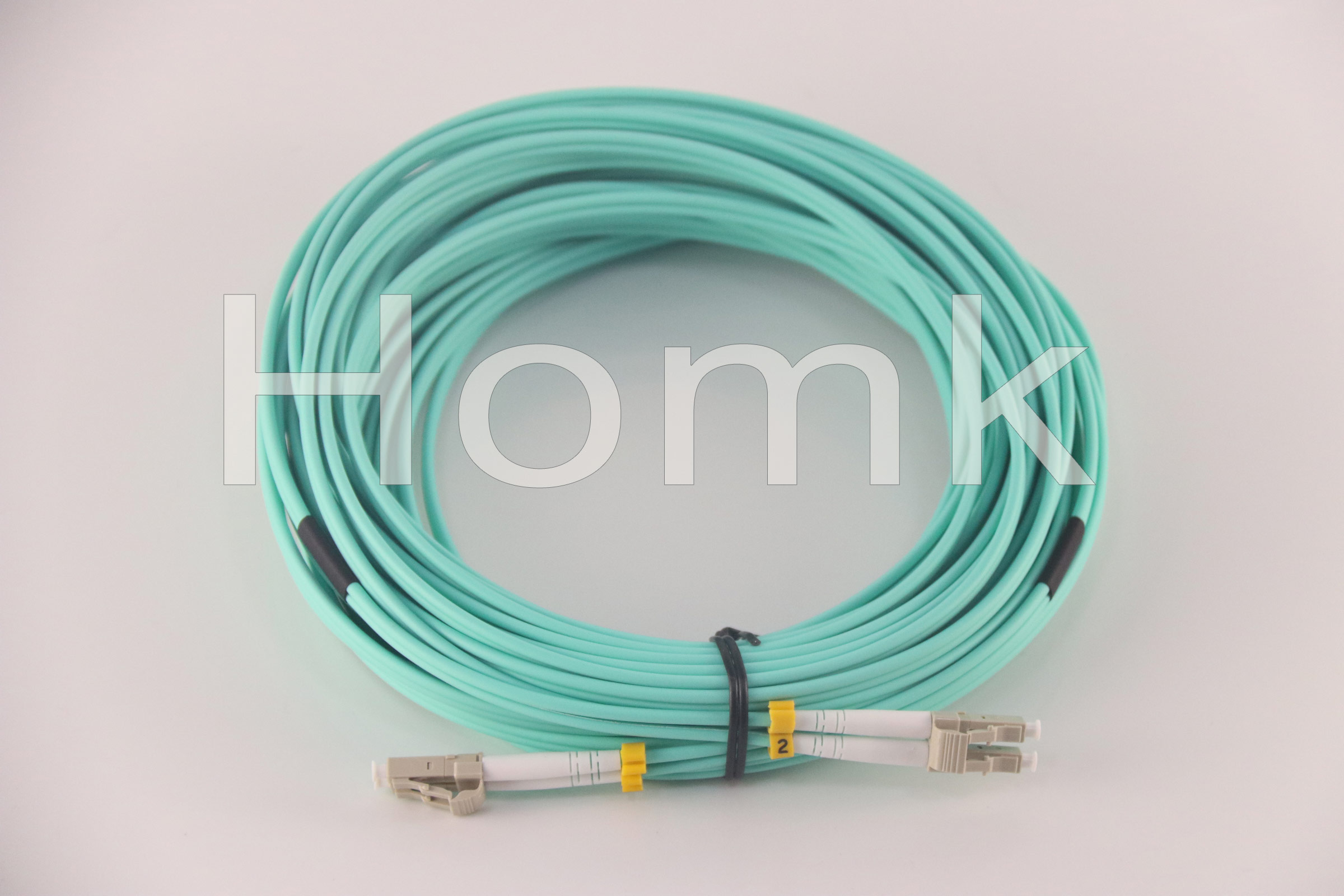

LC-LC OM3 20Meter DX Fiber Patch Cord

Details

LC-LC OM3 20Meter DX Fiber Patch Cord


Optical  fiber patch cord(LC-LC OM3 DX)Our optical fiber LC patch cord is high  return loss and low insertion loss ,Insertion loss of FC fiber patch  cord is less than 0.3dB,Return loss of fiber LC patch cord is UPC more  than 55dB ,APC is more than 60dB



Standard: IEC, Telcordia GR-326-CORE

Polish:PC/UPC/APC


Tensile strength: >10kg

Fiber  cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC  or LSZH cable is available,Fiber FC optic patch cord with excellent  changeability and repeatability

Spec.

Fiber optic   patch cord

Insertion   loss

Less   than 0.2dB

Return   loss

MM more   than 35dB

SM more   than 55dB

APC more   than 60dB

Repeatability

Less   than 0.2dB

Changeability

Less   than 0.1dB

Operating  temperature

-40°C~80°C

Storage   temperature

-40°C~80°C

Tensile   strength

>10kg

Min.bending     radius

35mm

Length

Customized
