Shenzhen Homk Telecom Tech Co., Ltd.

Unitube Armored Outdoor Cable(GYXTW)

Details

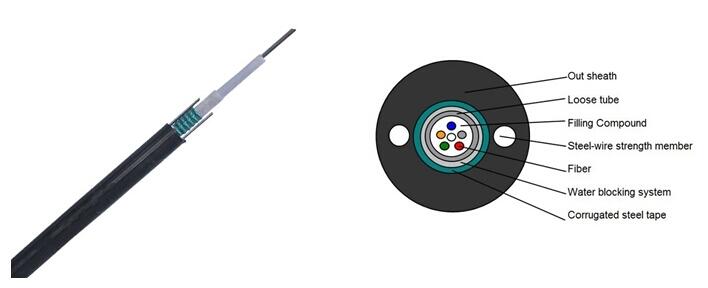

Unitube Armored Outdoor Cable(GYXTW)


Product Name:Unitube Armored outdoor cable

Model:Central Loose Tube GYXTW



Outdoor Fiber Optic Cable Application:

☆.Outdoor Fiber Optic Cable adopted to Outdoor distribution.
☆.Outdoor Fiber Optic Cable is suitable for aerial .pipeline laying method.
☆.Long distance and local area network communication.



Outdoor Fiber Optic Cable Characteristics:

☆.Steel-wire parallel member.filler protect tube fiber steel tape amored.
☆.Excellent mechanical and environmental performance.
☆.compact structure.light weight.
☆.can be installed conveniently and operated simply.

Outdoor Fiber Optic Cable Technical Parameters:

Cable Count

Out sheath
Diameter

Weight

Minimum allowable Tensile Strength
(N)

minimum allowable Crush Load
(N/100mm)

Minimum Bending Radius
(MM)

Storage
temperature

(MM)

(KG)

short term

long term

short term

long term

short term

long term

(℃)

2

8.3

78.00

1500

600

1000

300

20D

10D

-40+60

4

8.3

78.00

1500

600

1000

300

20D

10D

-40+60

6

8.3

78.00

1500

600

1000

300

20D

10D

-40+60

8

8.3

78.00

1500

600

1000

300

20D

10D

-40+60

10

8.3

78.00

1500

600

1000

300

20D

10D

-40+60

12

8.3

78.00

1500

600

1000

300

20D

10D

-40+60



Outdoor Fiber Optic Cable Characteristics:

Fiber Sort

Multimode

G.651

A1a:50/125

Graded-index fiber

A1b:62.5/125

Singlemode

G.652(A、B、C)

B1.1:Conventional fiber

G.652D

B2: Zero  dispersion shifted

G.655

B1.2 :Cut-off wavelength shifted

G.657(A1、A2 、B3)

B4: Main technical data for positive
  dispersion shifted single-mode fiber
