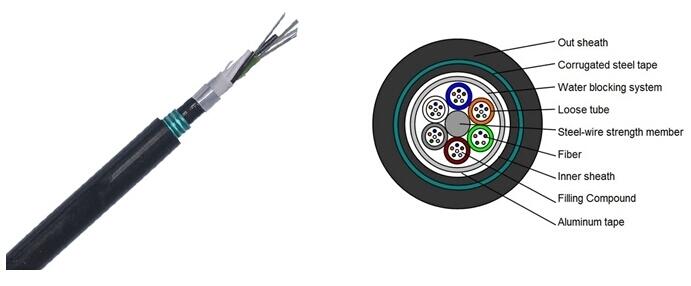

Double Armored Double Sheath Cable
Product Name：Armored and Double Sheathed Outdoor Cable
Model：GYTA53
Outdoor fiber cable application:
☆.Adopted to Outdoor distribution.
☆.Suitable for aerial, and direct-burial method.
☆.Long distance and local area network communication.
Outdoor fiber cable characteristics:
☆.Steel wire strength.filler protect tube fiber.steel tape armord.
☆.Good ultra violet radiation resistant property.
☆.Double sheath and Double armored..Good moisture-resistance.
Technical Parameters:
Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage | |||
（MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
24 | 14.5 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
36 | 14.5 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
42 | 14.5 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
48 | 15.5 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
60 | 15.5 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
72 | 15.5 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 96 | 16.5 | 275.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 144 | 19.6 | 345.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
Optical Characteristics: | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
G.652D | B2: Zero dispersion shifted | |||
G.655 | B1.2 :Cut-off wavelength shifted | |||
G.657（A1、A2 、B3） | B4: Main technical data for positive | |||
