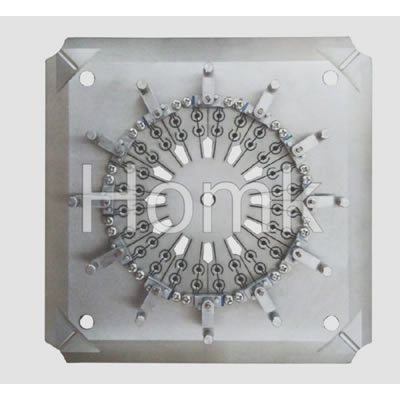

1.25mm PC-48 Ferrule Fiber Polishing Fixture

Details

100% Original Swiss S136 Material 1.25mm PC-48 Ferrule Fiber Polishing Fixture By HOMK Exclusive Manufacturing


The fixture is IPC Structure, Independent compression of each connector. Polishing fixture pass rate with Interference> = 98%   (100%  Typical, according to IEC), APPEX OFFET is within 24. This   polishing  fixture is high stability and good surface quality.

The jig using high quality steel with heated treat, the hardened steel S136 provide long service life. This polishing fixture can design the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, according to the customer request.

1. It is used in four corners corners fiber polishing machine, to plishing connectors.

2. This fixture adopt independent pressurized way, eliminate ferrules show the different length effects on polishing.

3. This one each polishing fixture can hold 48 connectors. It has high production efficiency.

4. The plugs of it can be interchanged, extend polishing fixture's life.

5. It has good quality, high efficiency,

6. All kinds of polishing fixture can be customized according by customer requirment.
