Details

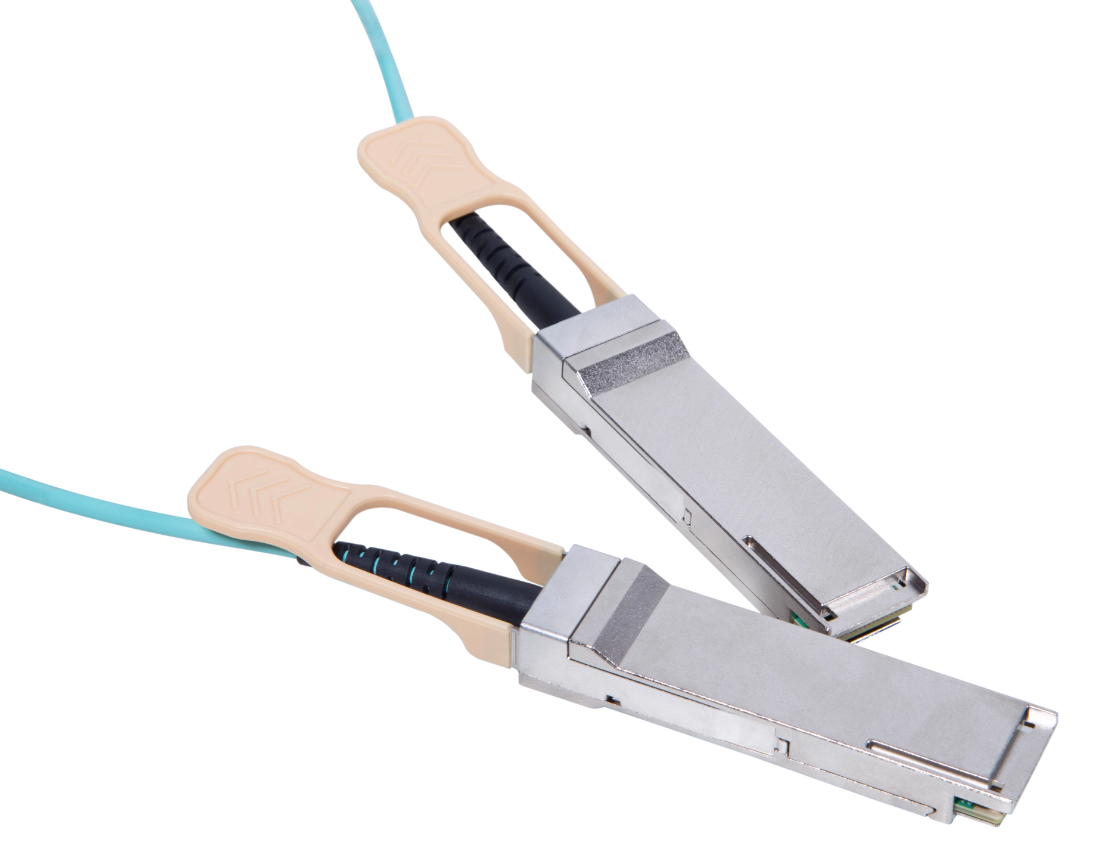

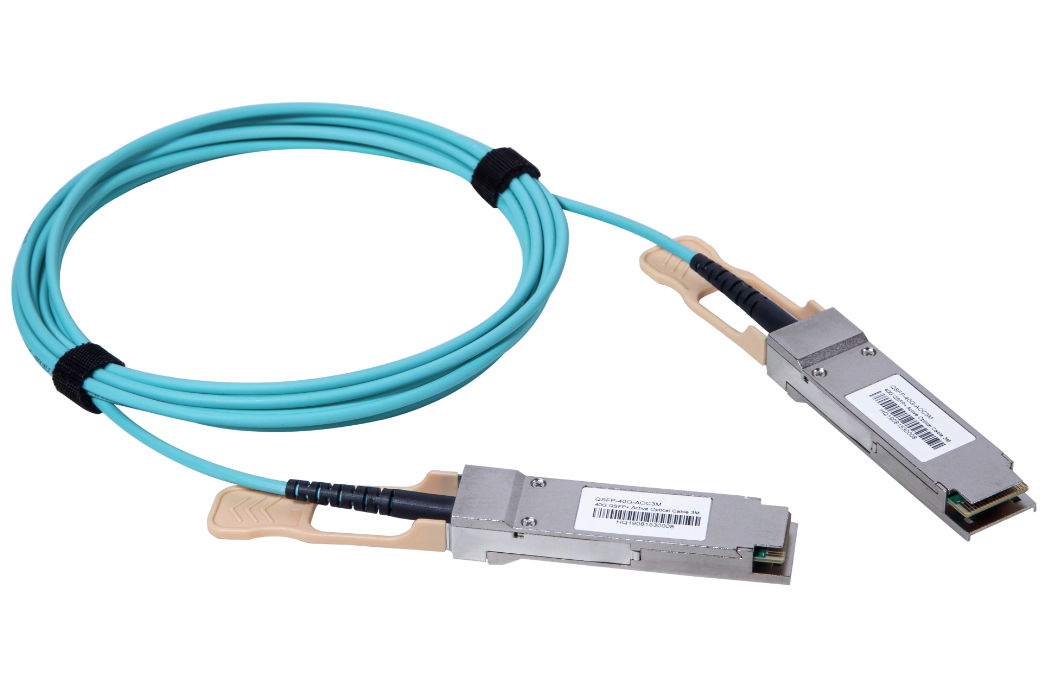

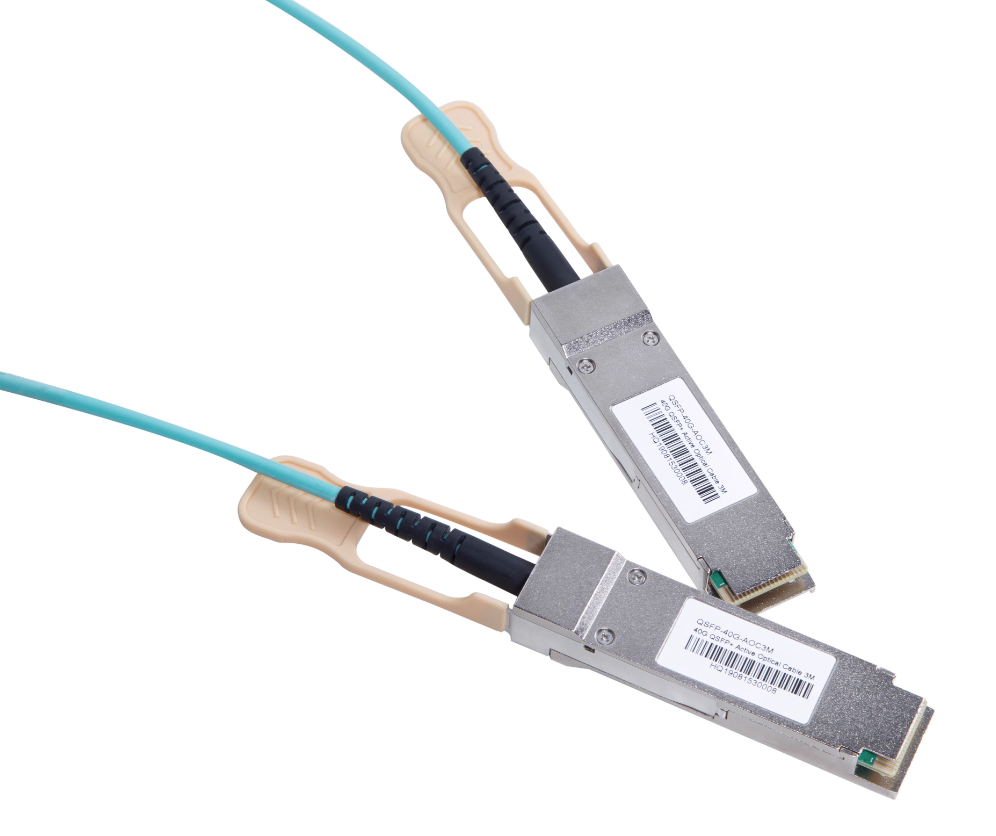

10G SFP+ AOC 1m/2m/5m/7m/15m/20m/100m Active Optical Cable 10G SFP AOC cable]
Product Description
Nufiber’s 10G-AOC-xM SFP+ Active Optical Cable (AOC) is a 10Gbps solution to10G Ethernet, and data center. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.
Features:
| 1 | 10Gb/s active optical cable up to 100m OM2 MMF |
| 2 | 850nm VCSEL and PIN receiver |
| 3 | Single 3.3V power supply |
| 4 | Operating Case Temperature: -5~75℃ |
| 5 | Hot pluggable |
| 6 | Low Power Consumption |
| 7 | Light weight |
| 8 | Small Bend Radius |
| 9 | Digital Diagnostic Monitor(DDM) |
| 10 | All-metal Housing for Superior EMI Performance |
Applications
Datacom
10G Ethernet
Other high-throughput data transmission network
Standard
Compliant with SFF-8431 and SFF-8432
Compliant with SFF-8472 Rev 10.2
Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
RoHS Compliant
Product Ordering Informations:
| Model | Description |
| 10G-AOC-xM | 10G SFP+ to 10G SFP+ AOC Cable OM3 1meter |
| SFP28-SFP28-AxM | 25G SFP28 to 25G SFP28 AOC Cable OM3 1meter |
| QSFP-QSFP-AxM | 40G QSFP+ to 40G QSFP+ AOC Cable OM3 1meters |
| QSFP-4SFP-AxM | 40G QSFP+ to 4*10G SFP+ AOC Cable OM3 1meters |
| QSFP28-QSFP28-AxM | 100G QSFP28 to 100G QSFP28 AOC Cable OM3 1meters |
| QSFP28-4SFP28-AxM | 100G QSFP28 to 4*25G SFP28 AOC Cable OM3 1meters |
