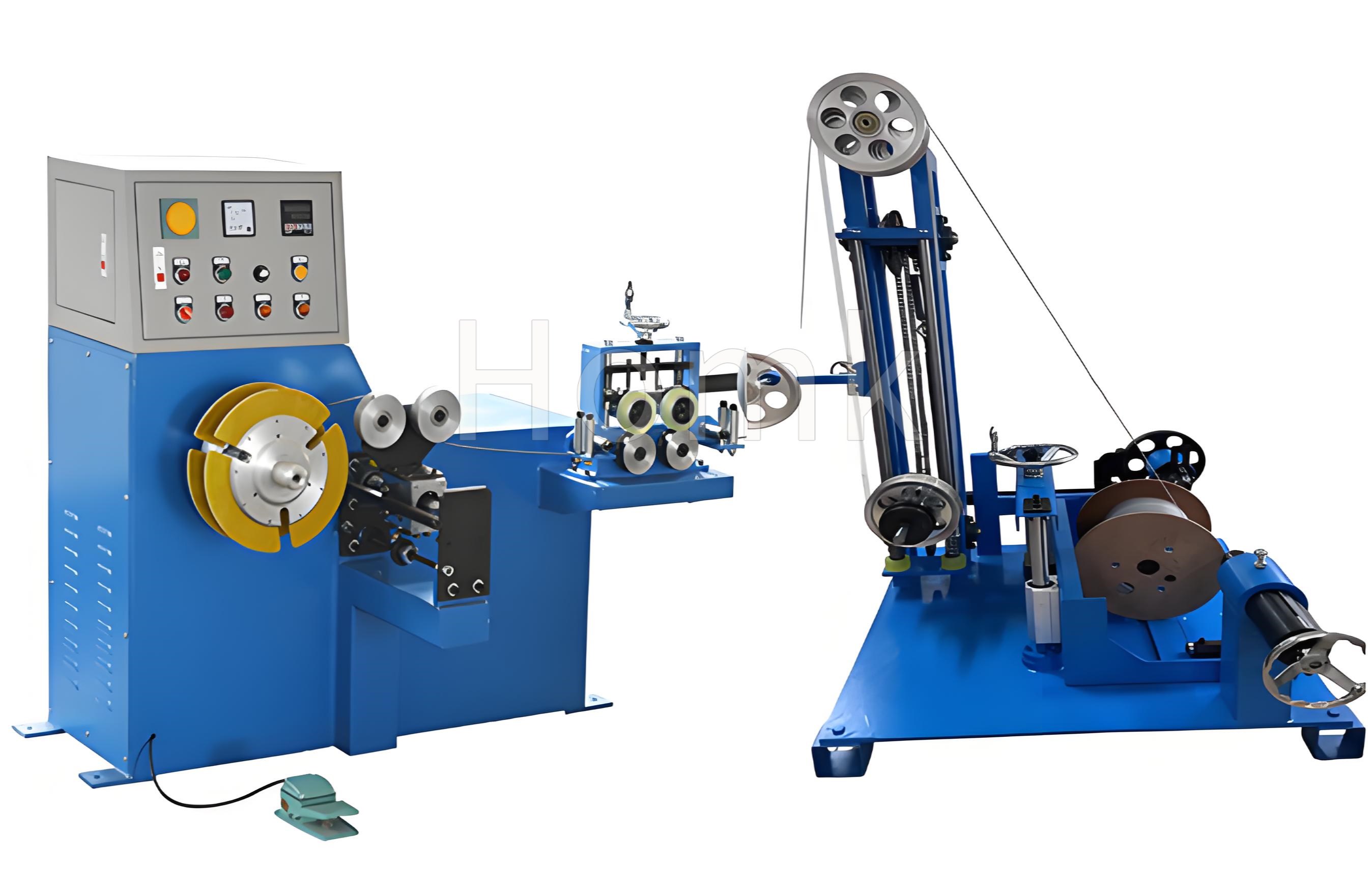

Automatic Waterproof Cable Cutting Machine

Features of this machine

1. Fast and convenient to install and unload the discharge disc, adopt the combination guide wheel to store the line, and use the linkage brake mechanism to lay out the line without disorderly line.

2. line arrangement adopts the light rod type guide wheel and the rising force type automatic line arrangement, the line arrangement is neat and beautiful, the mature operator 30-40 seconds one plate.

3. The cable into a circle, can use self-expansion type pancake machine, the inner diameter can be freely tight, can be quickly bundled and easily removed, high efficiency, short time.

2.2 Scope of application

1. wire disc outer diameter φ300mm( adjustable).

2. inner core of wire disc φ120mm( optional inner diameter of wire disc by customer).

3. wire disc width 30-80 mm( adjustable).

4. cable type leather cable, butterfly cable. self-supporting leather wire ,12 core optical cable.

5. reel speed r/min.0-600

6. Speed control 2.2 KW inverter

7.Cable cutting specification :2.0-12.0 mm single and double core cable.

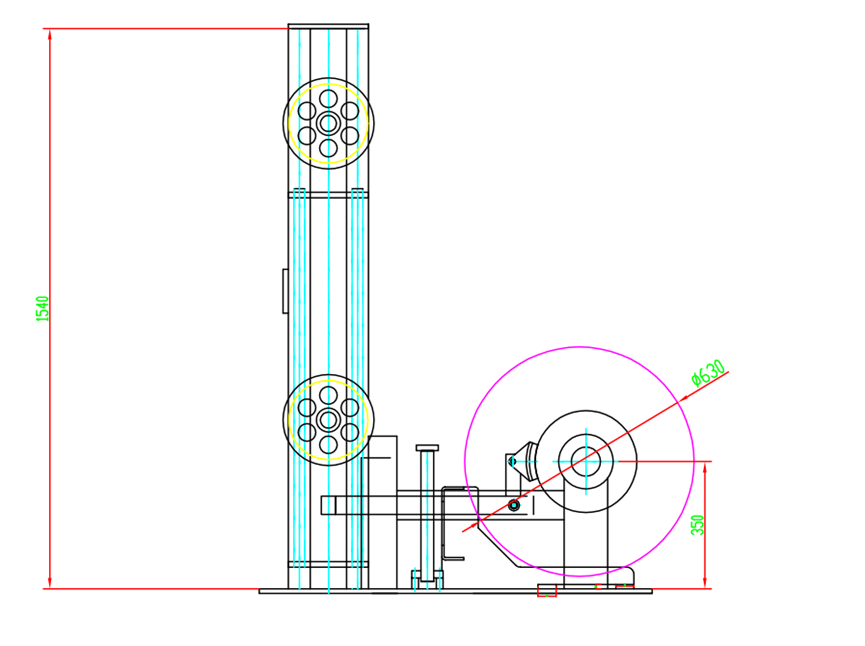

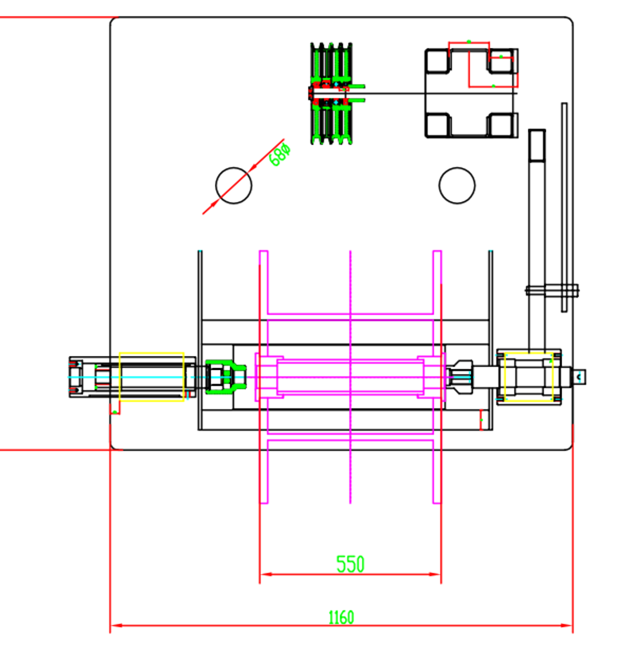

Installation of a leather cable machine

1. Cable reel specifications used: Outer diameter 400-650mm, height 300-550mm, inner hole 56-80mm;

2. Equipment load-bearing capacity range: ≤250kg;

3. Equipment wire laying speed: <350 revolutions per minute;

4. Equipment mounting method: Screw-type feed chuck, screw-type lifting (electric lifting is optional)

5. Dimensions (mm) : Length × width × height ≈1200×1100×1550.
