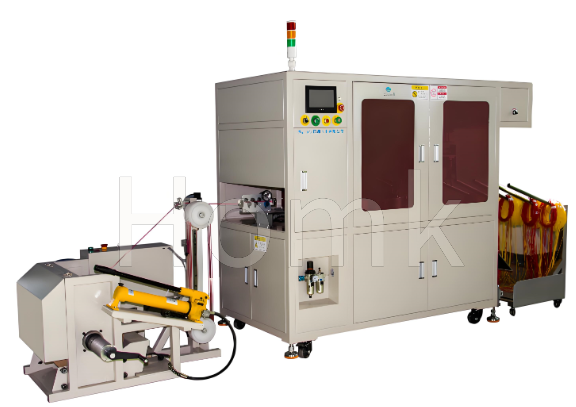

Automatic Cable Winding,Hanging,Cutting Machine

Technical parameters:

l.Automated wrapping and hanging, one person can operate 8-10 machines.

2.Automatic switching between using decorative paper or zip ties, with spray codingfunction.

Applicable:2.0/3.0 single and dual fiber cable (connected printer printer)

Winding appearanc:circle

Applicable wire diameter:≤Ф4mm

Cutting line length:3m-50m(2.0 can be appropriately increased)

Cutting accuracy:+5mm

Head length:40-70mm adjustable

Tail length:40-70mm adjustable

Efficiency:700pcs/H(3mwire)

Air pressure:0.6-0.75 Mpa

Size:Host:length1800*width750*height 1700mm

Area: length 4000* width 1500(including pay-off and take-up device)

The pay-off rack : can drive a load of 30KG, and can install a 600mm diameter and 450

Equipment structure:payoff machine (hydraulie lifting and electric lifting optional), host,height coilcable rack.
