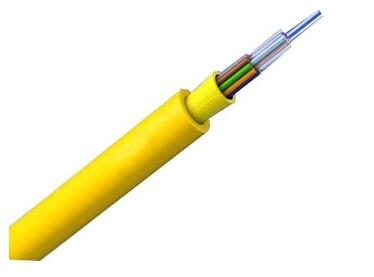

Distribution Tight Buffer GJFJV
Product Name:Indoor Fiber Cable
Model:Distribution Tight Buffer GJFJV
Indoor fiber cable Application:
☆.Adopted to indoor distribution.
☆.As pigtail of communication equipment.
☆.The indoor fiber cable is suitable for communication equipment served.
☆.Indoor fiber cable is suitable for floor connection.
Indoor Fiber Cable Characteristics:
☆.Hight strength kevlar yarn member.
☆.More tight buffered design.
☆.Round construction.
☆.Saft. Easy to strip.
Indoor Fiber Cable Technical Parameters:
Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage | |||
（MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
02 | 3.0 | 0.9 | 15.00 | 600 | 200 | 1000 | 200 | 20D | 10D |
04 | 4.0 | 0.9 | 22.00 | 600 | 200 | 1000 | 200 | 20D | 10D |
06 | 4.0 | 0.9 | 23.00 | 600 | 200 | 1000 | 200 | 20D | 10D |
08 | 5.0 | 0.9 | 27.00 | 600 | 200 | 1000 | 200 | 20D | 10D |
10 | 5.0 | 0.9 | 30.00 | 600 | 200 | 1000 | 200 | 20D | 10D |
12 | 6.0 | 0.9 | 35.00 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 24 | 8.3 | 0.9 | 46.00 | 600 | 200 | 1000 | 200 | 20D | 10D |
Indoor Fiber Cable Characteristics: | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
G.652D | B2: Zero dispersion shifted | |||
G.655 | B1.2 :Cut-off wavelength shifted | |||
G.657（A1、A2 、B3） | B4: Main technical data for positive | |||
