INNO high precision optical fiber cleaver V8

  • Model No.: INNO high precision optical fiber cleaver V8
  • Products Category : Fiber Cleaver > Koera INNO
  • Price : INNO high precision optical fiber cleaver V8
Details

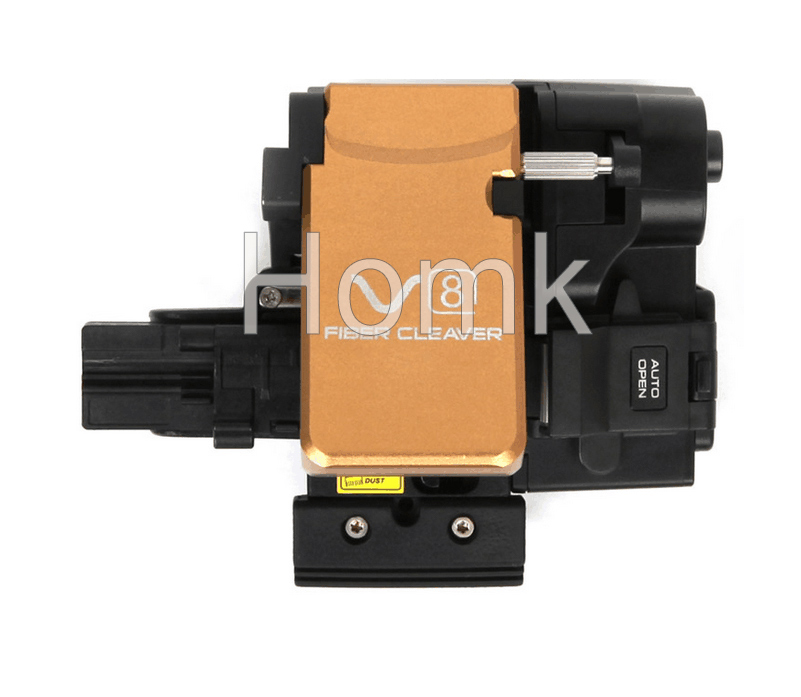

 INNO high precision optical fiber cleaver V8


Product Description

        The high precision optical fiber cleaver V8 cuts optical fiber very precisely. V8 can be used for a wide range of holders for up to 12 ribbon cables as well as the universal holders for 250um, 900um and 3.0mm fibers and flat cables. In one simple operation, V8 fiber cleaver maximizes work efficiency and automatically collects pieces of optical fiber (blade offers more than 48,000 cuts with easy blade position selection). With outstanding features of the V8, users can cut optical fibers most accurately and be prepared for ideal fusion splicing.


Features

 Up to 12 ribbon cable and universal holder for 250μm, 900μm, 3.0mm fiber cable.

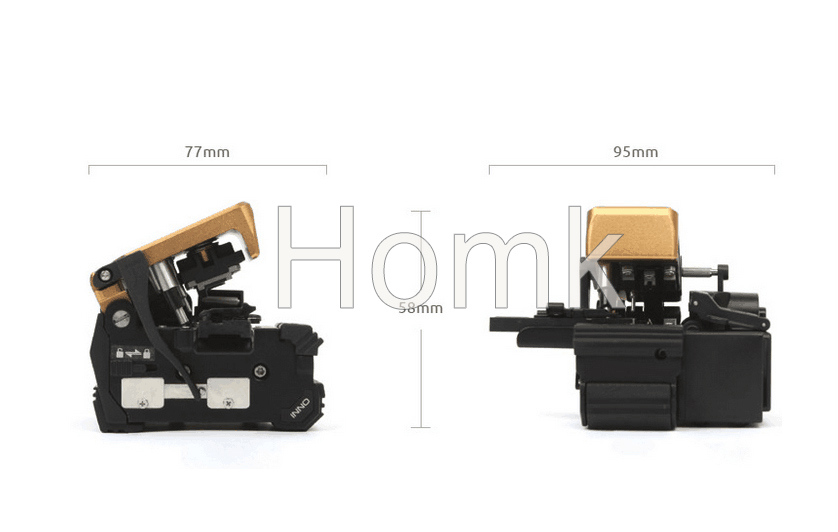

Size and Weight
Height: 2.28 inches (58 mm)
Width: 3.74 inches (95 mm)
Depth: 3.03 inches (77 mm)
Weight: 0.61 pounds (280grams)




Specifications

Type

Single & ribbon fiber cable cleaver

Cladding Diameter

125μm

Cleaved Length

Single fiber: 8~20mm / Ribbon fiber: 10mm

Applicable Fiber Cable

Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable

Ribbon fiber: 2 to 12 ribbon fiber cable

Typical Cleaved Angle

Less than 0.5 Degrees

Typical Blade Life Span

Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)

Operation Steps

1 Step

Reclaim Function

Blade push back

Holder

Single: Universal holder

Ribbon: Replaceable holder
