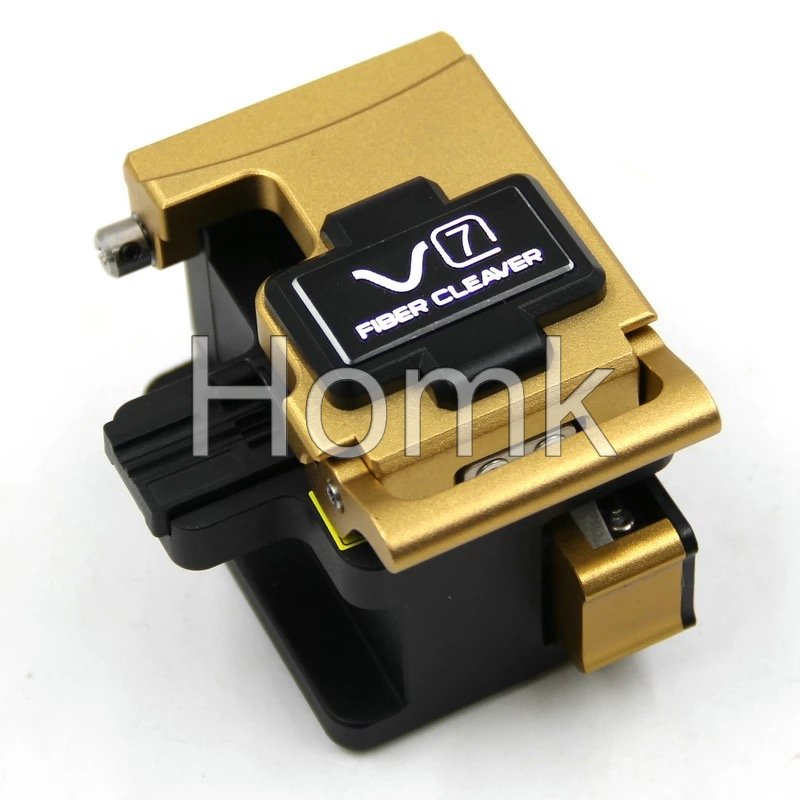

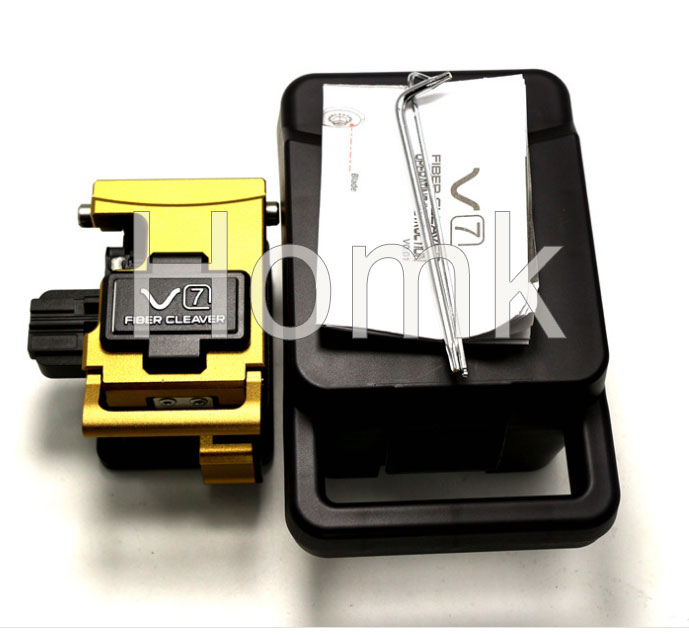

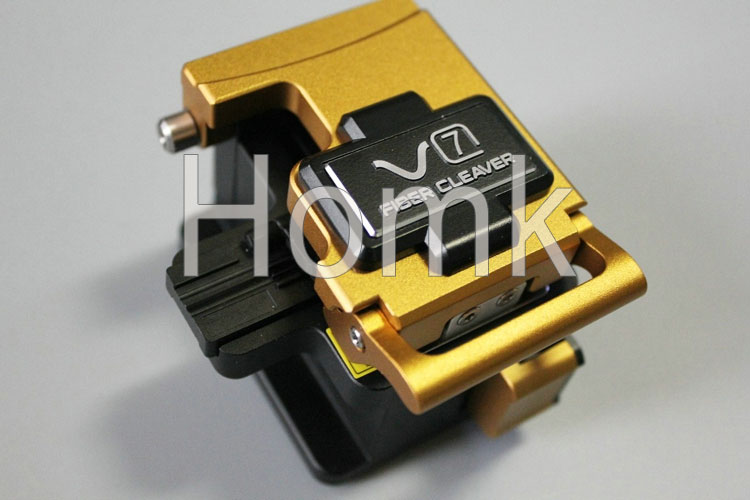

Koera INNO view7 Optical Fiber Cleaver
V7 High Precision Cleaver is an instrument for high precision fiber cutting.
V7 can be installed with a variety of holders for ribbon cable up to 12 fibers as well as universal holder which is applicable to 250μm,
900μm, 3.0mm fiber cable and flat cable.
Work efficiency can be maximized with easy and simple 2 step operations.

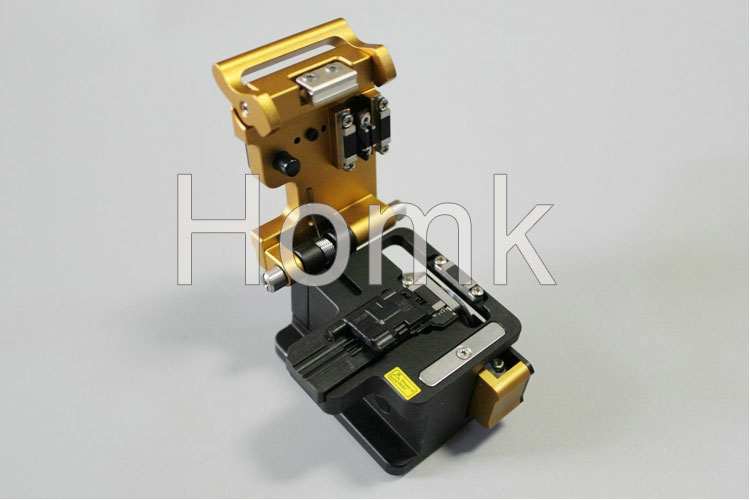

V7+as an optional model has an automatic collector for fiber shards and off cuts.
The blade provides over 48,000 fiber cleaves by easy and simple blade position selection.
Helped by unmatched functionalities, users can achieve the most accurate cleaving and ideally prepare their fusion splicing.
Overview
Place of Origin:Koera
Brand Name:INNO
Model Number:VIEW-7
Product name:INNO View 7 fiber cleaver
Cladding Diameter:125um
Typical Cleaved Angle:Less than 0.5 Degrees
Applicable Fiber Cable:250, 900um, 3.0mm fiber and flat cable Ribbon fiber
Holder:Single: Universal holder Ribbon: Replaceable holder
Cleaved Length:Single fiber: 8~20mm / Ribbon fiber: 10mm
Typical Blade Life Span: Total 48,000 fiber cleaves
Reclaim Function: Blade pushback
leaftime:2-3days
Payment: T/T, West Union, Moneygram, Paypal
Product details
| Product name | Fiber optic Inno view 7 Fiber Cleaver |
| Dimension | 93W x 68D x 52H[mm] |
| Weight | 300G |
| Fiber Type | Single & ribbon fiber cable cleaver |
| Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |
| Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable |
| Typical Cleaved Angle | Less than 0.5 Degrees |
| Operation Steps | 2 Steps |
| Typical Blade Life Span | Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights) |
| Holder | Single: Universal holder Ribbon: Replaceable holder |
