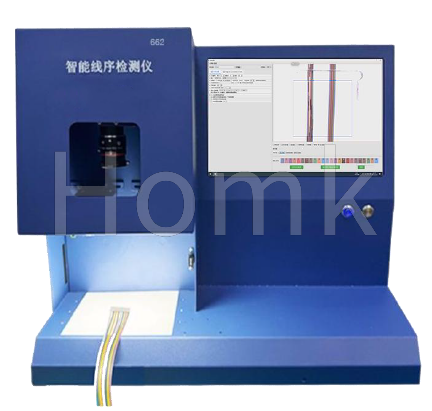

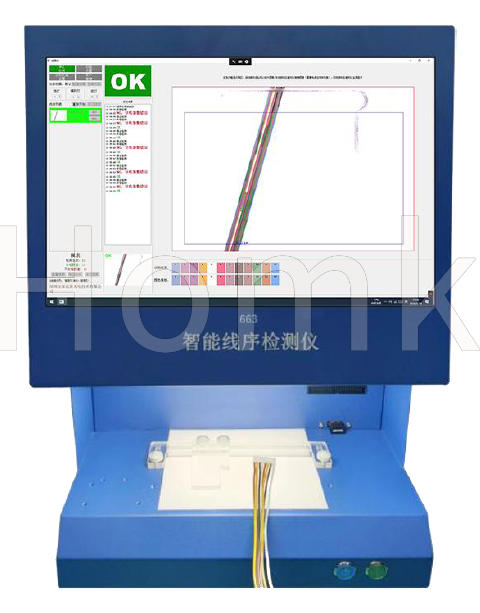

MPO Fiber Optic Color Sequence Tester HK-24M

• Product performance description

•

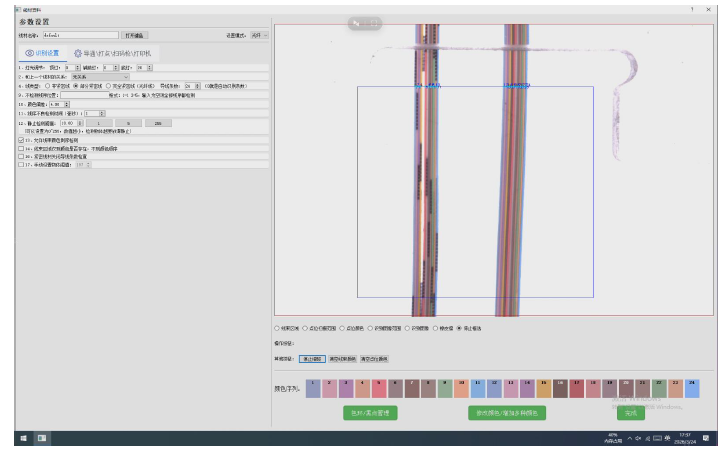

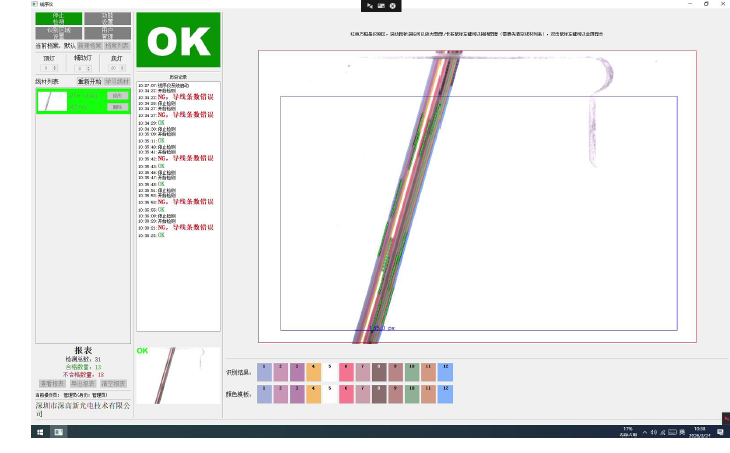

This tester is specifically designed for testing MPO/MT multi-fiber optical links.Utilizing high-precision image recognition technology, it automatically captures the color and arrangement of fibers within connectors, and quickly verifies the accuracy of channel fiber sequences according to the TIA-598 color coding standard. The device accurately identifies anomalies such as misaligned fibers or reversed sequences, and in real time displays the correspondence between fiber numbers and colors, clearly marking fault locations. With simple operation and high efficiency, it is suitable for quality inspection during MPO fiber ribbon production, data center cabling acceptance, and high-speed optical module link verification. It effectively prevents human visual misjudgment, ensuring accurate and reliable matching of multi-fiber transmission channels.

Supports dense number fiber detection in any channel, supports color ring (dot) detection, and offers rapid detection within seconds.

Multi-template parallel detection (simultaneously detecting products of multiple wire sequence specifications, without the need to switch templates).

Parameter:
