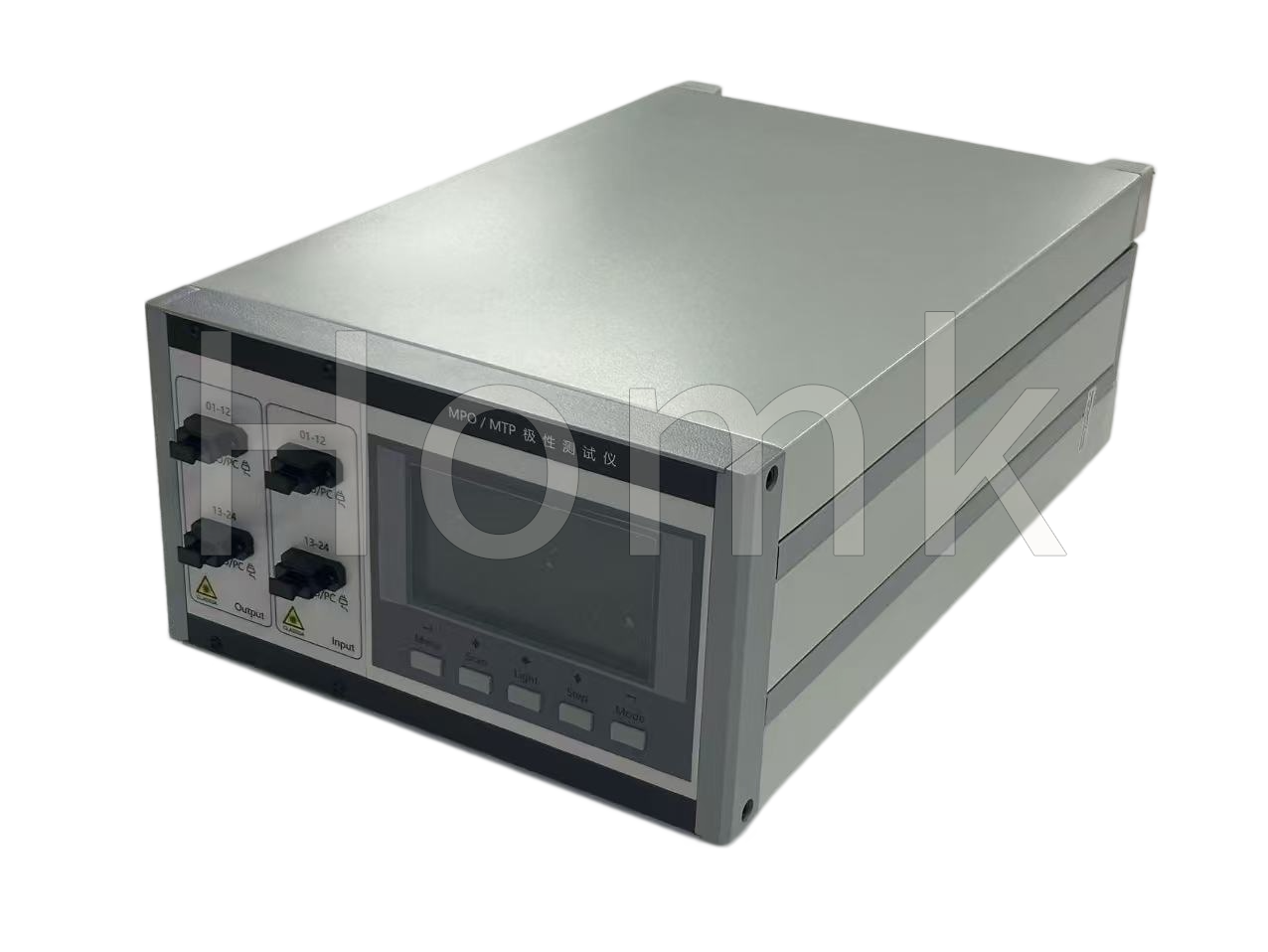

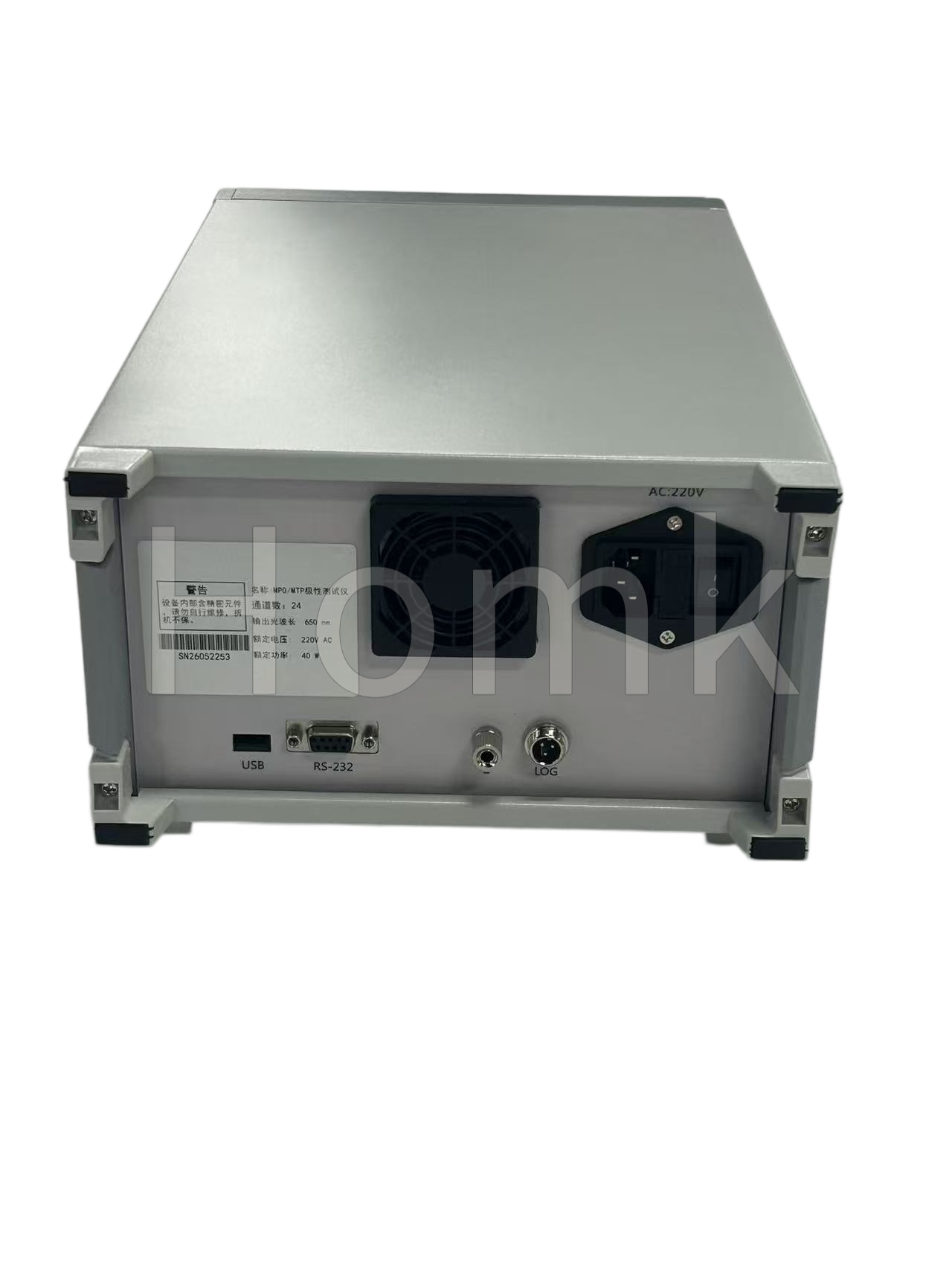

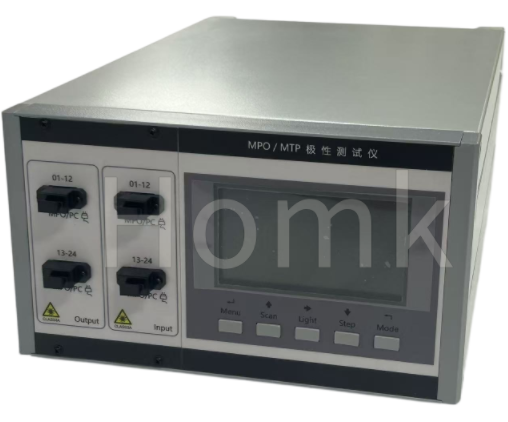

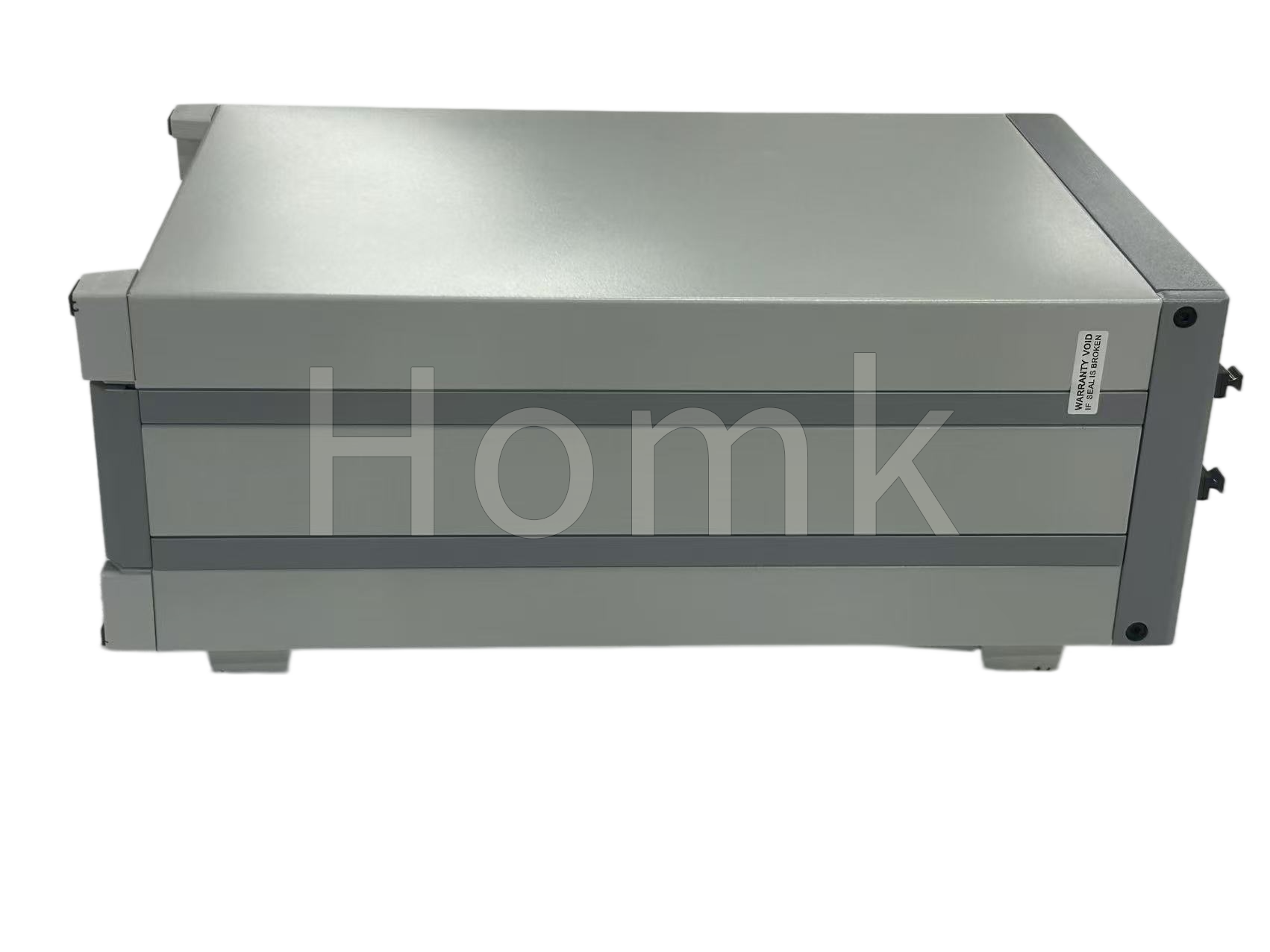

Automatic MPO MTP Patch Cord Polarity Tester 24Core

HK-24P polarity tester is an intelligent product designed for use in the production process of MPO/MTP cables for polarity determination and continuity analysis. Through a one-click automatic scanning operation, it can quickly indicate the continuity status of the cable, polarity (wire sequence) status, alarms, and error analysis. The HK-24P provides a fast, accurate, and efficient solution for MPO/MTP cable production, semi-finished product testing, and finished product inspection.

1. Compatible with 12-core, 24-core, 16-core, 32-core, 36-core, 48-core and other special core counts for testing. 2. Compatible with 9/125, 50/125, 62.5/125 fiber cores. 3. One-click operation, supports learning mode. 4. Supports error alarm and error polarity analysis. 5. Supports foot switch data upload function and anti-idiotivation function. 6. Can perform custom polarity settings, more intelligent. 7. Equipped with RS232, upper computer software application. 8. Upgraded color screen interface; new chassis shell supports multi-language switching in Chinese and English; replaceable wear parts of MPO connector. 9. HK-24P uses 1310 laser, supports adding any module.
