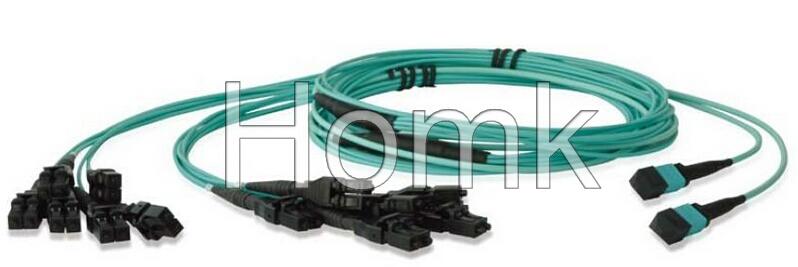

MTP-LC Patch Cord

Products Category : Fiber Patch Cord > MPO/MTP Patch Cord

Details

MTP-LC Patch Cord

Feature:

High Performance in IL & RL

● 8,12 and 24 fiber connector terminations and assemblies

● MPO / MTP Male (with guidepins) assembled with 0.9mm cable to single-fiber connectors

● Available in SM (9/125), MM (50 or 62.5/125), 10Gig fiber types
Specification:

Connector type	MPO		LC or SC
Fiber type	Single mode	Multimode	Single mode	Multimode
Polishing type	Angle	Flat	UPC
Insertion Loss	≦0.35dB	≦0.2dB	≦0.2dB	≦0.2dB
Return Loss	≧55dB	N/A	≧50dB	N/A
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
