HK-MT 8 12 24 48 72 core Fiber Connector Optical Interferometer is a high precision instrument developed and manufactured by HOMK Technology Co., Ltd. to measure the end face geometry of optical fiber connectors. It can supply the 3D topology image combining the newest high-speed computer and powerful software system.
Information:

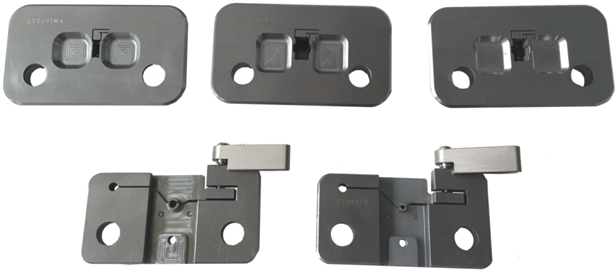

Mars-MT interferometer use white light and red light combined with the measurement of multi-fiber connector, the use of red light to measure single fiber connectors. Single and multi fiber measurement use the same software design, a key switching. The process of focusing, calibration, and measurement is completed automatically by software. Mars-MT single - and multi - fiber interferometer is mainly divided into two parts, the host computer and the special measuring software. The equipment is mainly composed of the following characteristics: 2.5mm and 1.25mm jig optional
Multi-Fiber | Measure Item | Measurement Range | Repeatability | Reproducibility |
X/Y Ferrule Radius（mm） | 3~∞ | 1% | 3% | |
X/Y Ferrule Angle（°） | 0 or 8 | 0.01 | 0.02 | |
Fiber Height（um） | 0~8 | 0.015 | 0.025 | |
Test Speed(Second) | MT-12 5s（Without Auto Focusing） | |||
Single-Fiber | Radius Of （mm） | 3~∞ | 0.1% | 0.2% |
Fiber Height（nm） | -150~+150 | 1 | 2 | |
Appex offset（um） | 0~500 | 1.0 | 1.5 | |
APC Angle（°） | 0 or 8 | 0.01 | 0.015 | |
Test Speed(Second) | 0.5s | |||
Objective Zoom Time | 2X | |||
Resolution Ratio | 2.6um | |||
Light Source | Red and White | |||
Power Supply | 220V 50Hz | |||
