Details

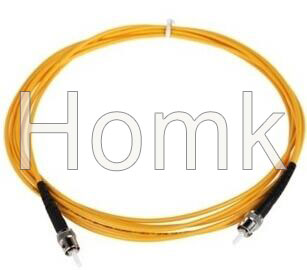

Fiber Patch Cord(ST-ST SM SX)
ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling.They are push-in and twist types.
ST patch cord Features:
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability
ST/UPC Specification：
SM | MM | |
Polish | UPC/APC | PC |
Insertion Loss | Typical ≤0.2dB | ≤0.25dB |
Return Loss | ≥50DB(PC) | ≥30dB |
Interchangeability | ≤0.2dB | |
Repeatability | ≤0.1dB | |
Durability | ≤0.2dB typical change, 1000 matings | |
Tensile Strength | > 10kg | |
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |
