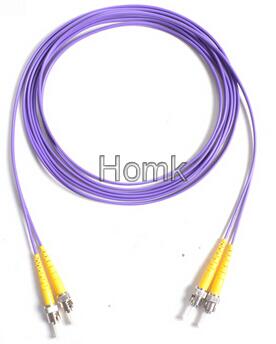

ST-ST OM4 Fiber Optic Patch Cord
Our optical fiber patch cord is high return loss and low insertion loss ,
Insertion loss of FC fiber patch cord is less than 0.3dB,Return loss of fiber LC patch cord is UPC more than 55dB ,APC is more than 60dB
Standard: IEC, Telcordia GR-326-CORE
Polish:PC/UPC/APC
Tensile strength: >10kg
Fiber cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC or LSZH cable is available,Fiber FC optic patch cord with excellent changeability and repeatability
Spec. | fiber optic patch cord |
Insertion loss | Less than 0.2dB |
Return loss | MM more than 35dB |
SM more than 55dB | |
APC more than 60dB | |
Repeatability | Less than 0.2dB |
Changeability | Less than 0.1dB |
Operting termperature | -40°C~80°C |
Storage temperature | -40°C~80°C |
Tensile strength | >10kg |
Min.bending radius | 35mm |
Length | Customized |
