Details

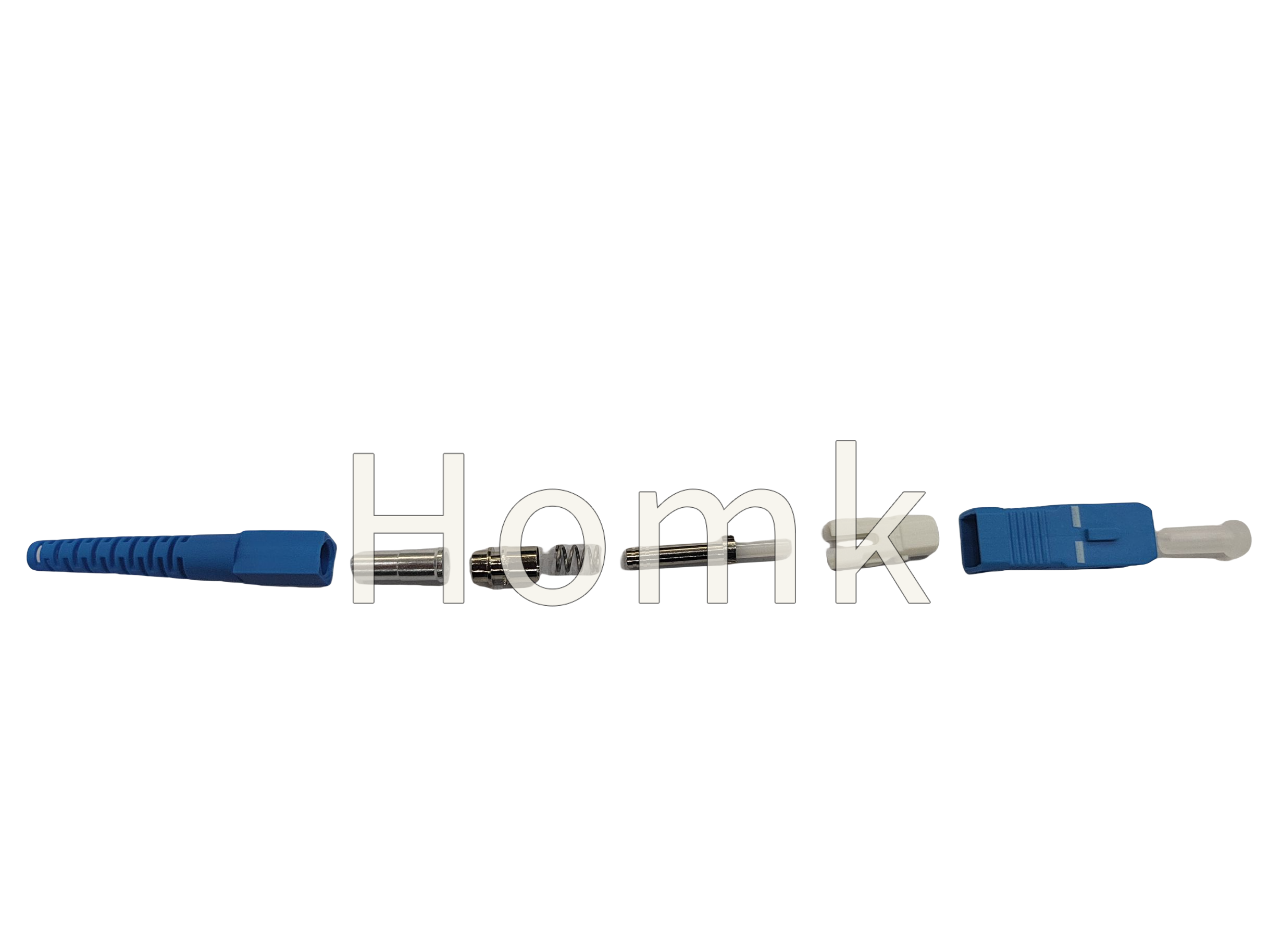

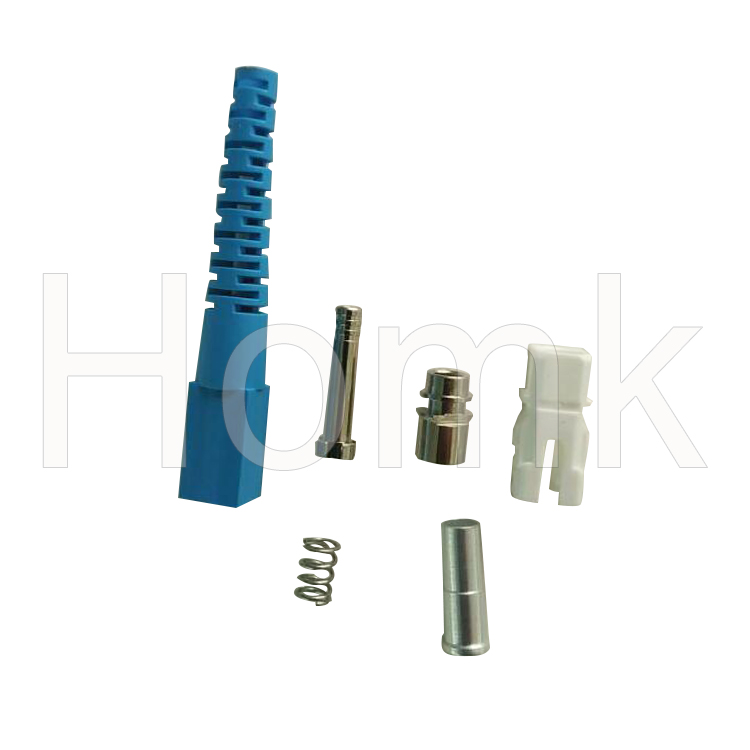

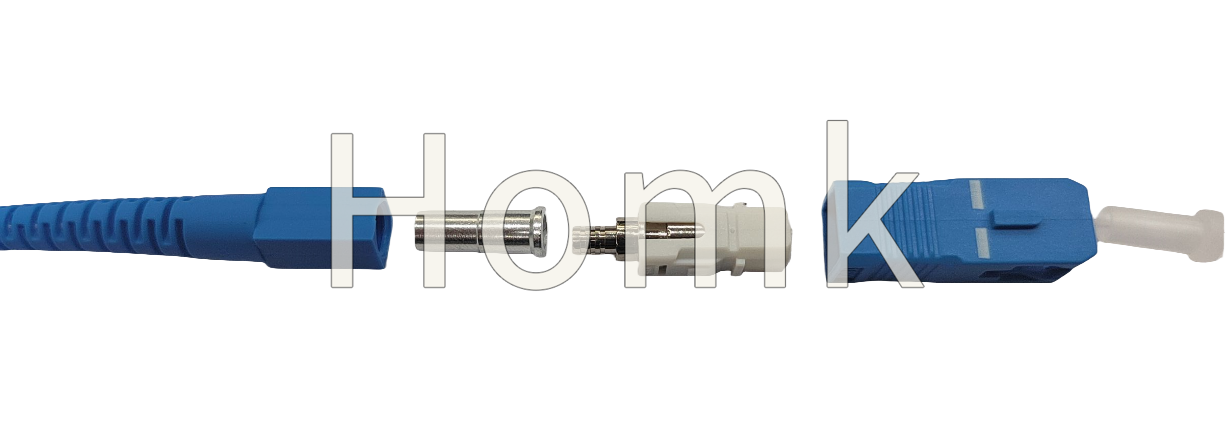

SC PC FTTH drop cable connetcor
Features:
Zirconia ferrule
Precise dimension
Low insertion loss
High return loss
Convenience and ease of handling
Environmentally stable
Application:
Telecommunications
LAN
CATV Networks
Active Device Termination
Industrial and Military
Instrumentation
FTTX
2. Specifications: | ||||||
Items | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insertion Loss | <0.2dB | <0.3dB | ||||
Return Loss | >45dB | >50dB | >60dB | 35dB | ||
Durability | <0.1dB typical change,500 matings | |||||
Operating Temperature | -40 to +75 | -40 to +75 | ||||
Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:1um | 125um,Conectricity:1 to 3um | ||||
125.3+1/-0um, Conentricity:1um | 127um,Conectricity:1 to 3um | |||||
125.5+1/-0um, Conentricity:1um | 128um,Conectricity:1to 3um | |||||
126.0+1/-0um, Conentricity:1um | ||||||
