HK-900A Auto Portable End Face Inspection Probe

Fast, accurate, and convenient are the eternal themes and highest requirements for on-site fiber end-face inspection. The new SpeedyTest fiber end-face inspector from Yitianlong features unique

A brand-new control structure with an ultra-compact design enables complex inspections in any scenario. Equipped with EndFaceData, a high-precision image processing algorithm independently developed by Yitianlong.

Software that quickly and reliably assesses end-face quality, making inspection simpler!

Product Features

— New compact, ultra-short probe design, easy to grip and control, with detachable cable for

effortless operation in any complex scenario.png

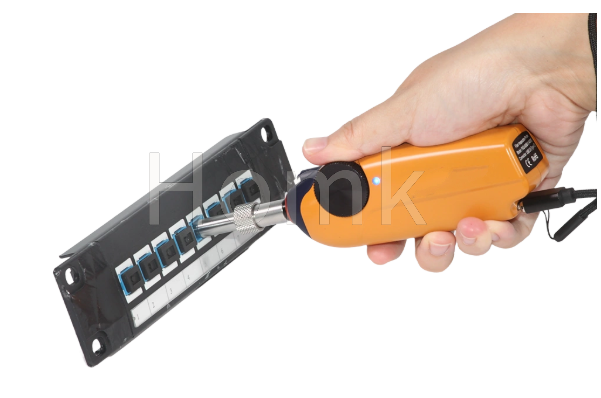

— Extended probe tip design allows inspection of deep hole end faces in adapters located at

remote or densely packed areas without the need for additional extension probes.

— Focus freely in any direction with a finger swipe, achieving rapid imaging in 1 to 3 seconds

— High/low light source switchable for easy observation of fine end-face defects and scratches,

with photo capture for quick on-site documentation

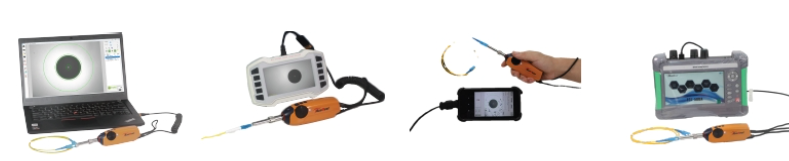

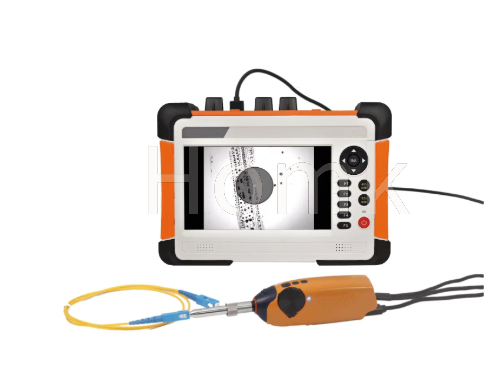

— USB 2.0 output connects to the dedicated display, and can also connect to various display

terminals such as OTDRs, Android phones, and computers.

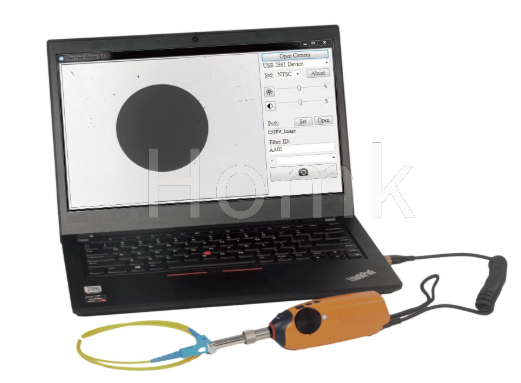

Supports end face inspection on Windows and Linux systems

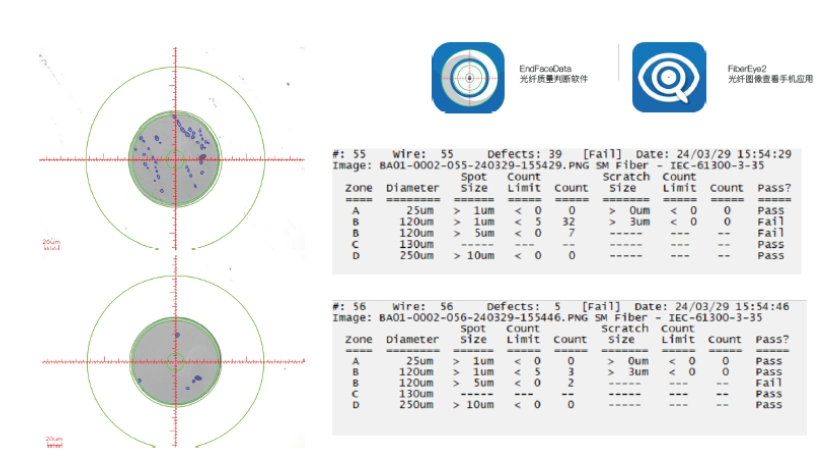

Optional computer connection for end-face image quality assessment, based on industry IEC standards, with self-developed

Developed the high-precision algorithm EndFaceData software, which rapidly assesses end-face quality within 0.5 seconds, delivering stable and reliable results.

The probe uses a removable USB Type-C to USB 2.0 universal output cable, completely eliminating

the need for repairs due to internal signal line failures.

— Optional magnification of 400X/200X, or dual lens option allowing users to switch lenses as

needed

— 50+ compatible adapter heads for inspecting fiber end faces of various optical components,

including single/multi-fiber male and female PC/APC connectors, enabling precise control and

rapid end-face positioning

USB Type C to USB 2.0 connection cable, with strong compatibility

The new upgraded fiber optic end detection instrument SpeedyTest3 of HOMK adopts the USB

\2.0 output connection method. Users can connect it to a computer for use. Specialized

Display screen, OTDR and user Android mobile phones, supporting Windows 7, 8, 10 and Linux

systems, with strong compatibility, suitable for various application scenarios.

The new probe comes with a Type C port and a detachable connection cable, which makes it

convenient for long-term use and maintenance of the equipment. If the connection cable breaks or

the connection is not smooth, it may cause the end inspection instrument to move back and forth.

Reconditioning is one of the common maintenance problems that end inspection systems

encounter. The end inspection instrument comes with a Type C port and a detachable

connection cable, ensuring that users can purchase it at any time from the market.

Universal wiring, eliminating the cumbersome process of sending for repairs, facilitating the

 long-term maintenance and use of the probe.

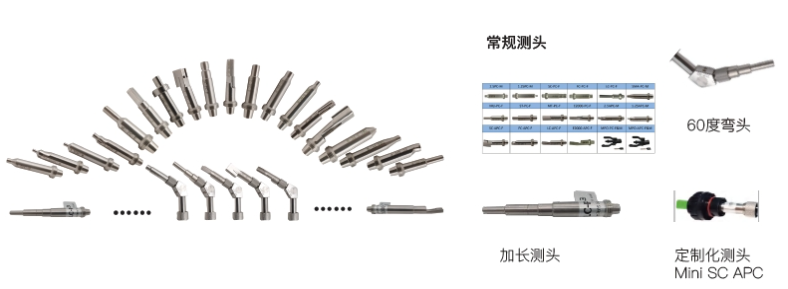

50+ types of adapter probes, supporting multiple ports and special ports for measurement

The  handheld optical inspection instrument is equipped with multiple adapter interfaces, which

can meet the requirements for inspecting various optical connectors, optical transceiver modules,

40G, and 100G SFP/QSFP.

Optical modules, MPO PC/APC, MT connector and other products. The compatibility between the

probes and adapters is over 99%, and custom adapter heads can also be supported.
