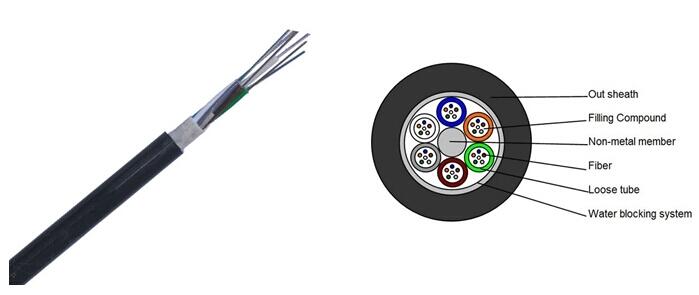

Non-metallic Non-armored Cable
Product Name：GYFTY
Model：Dielectric Loose Tube Cable
Application:
☆.Adopted to Outdoor distribution.
☆.Adopted to trunk power transmission system.
☆.access network and local network in high electromagnetic interfering places.
Characteristics:
☆.Non-metal strength member.
☆.Filler protect loose tuber fiber.
☆.Non-metal strength has an excellent anti-electromagnet ability.
Technical Parameters:
Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage | |||
（MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
24 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
36 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
42 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
48 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
60 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
72 | 10.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 96 | 14.5 | 145.0 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 144 | 18.3 | 185.0 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
Optical Characteristics: | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
G.652D | B2: Zero dispersion shifted | |||
G.655 | B1.2 :Cut-off wavelength shifted | |||
G.657（A1、A2 、B3） | B4: Main technical data for positive | |||
