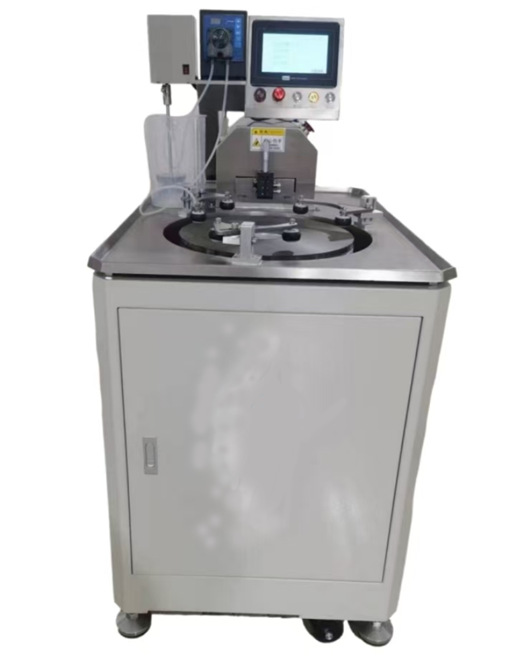

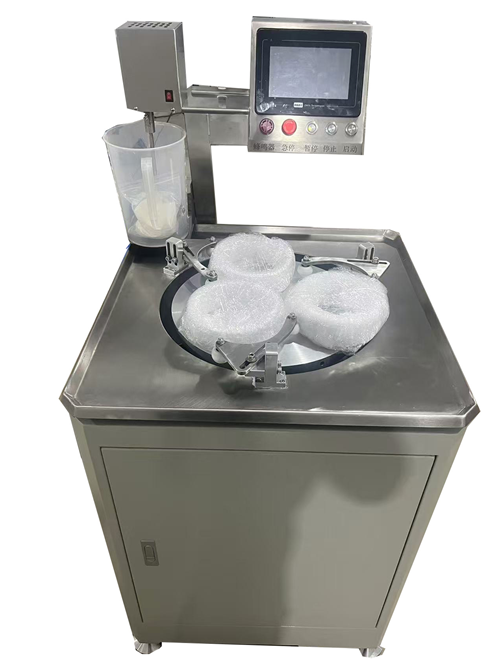

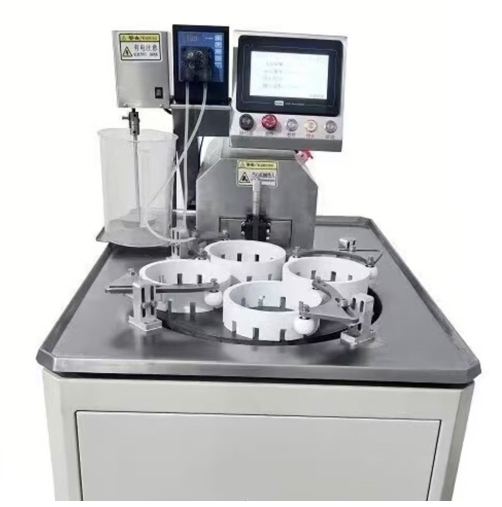

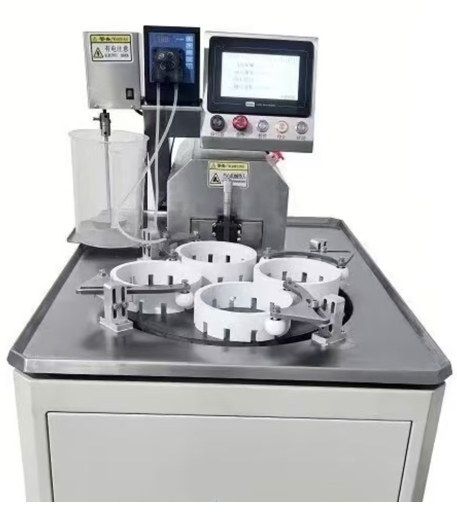

HKX-410 FA Polishing Machine

HKX-410 is a variable-speed planar grinding and polishing machine. The processed products include ceramics, quartz, glass, metals, plastics, stainless steel, and other materials. The independent self-rotation and revolution combined ceramic ring movement ensures the uniformity and consistency of the polishing quality. The self-rotation and revolution use a frequency converter for stepless speed adjustment. The speed range is between 10 and 120, which can meet different polishing requirements. The grinding time can be set arbitrarily according to the processing requirements. When the revolution speed of the grinding tray is 120 rpm, the jump of the grinding tray is within 0.005mm. The number of grinding times is automatically recorded, which can guide the operator to adjust the grinding time according to the usage times of the grinding rubber. The grinding and polishing rubber can be simply attached to the grinding tray. When removing the grinding disc, lift the grinding disc. The grinding machine uses waterproof materials to ensure the sealing and waterproof of the electrical appliances and the case. It can be used with confidence.
Operation instructions for the grinding machine:
1. Plug in the power: The power socket must be able to handle a voltage of 1500 watts or higher before it can be used.
2. Attach the polishing and grinding sheet to the rotating tray. You can use a synthetic resin ring or a ceramic correction ring to smooth the surface.
3. Repeat the surface repair until it meets the requirements. Adjust the ceramic ring support to the middle position of the ceramic ring height.
4. Install the grinding disc of the product into the ceramic ring and set the grinding time.
5. The peristaltic pump and the stirrer will cooperate to drip the slurry for the grinding time. The machine will automatically stop operating.
6. When stopping the work, please press the red emergency stop button. 7.
During operation, please do not touch the rotating disc of the grinder to avoid injury.
9. When disassembling or assembling the grinding fixture or other components, make sure to cut off the power supply.

Main technical indicators:
1. Pressing range of the grinding machine: 1 - 20 kg
2. Grinding disc size: φ410mm × 15mm
3. Main motor speed: 10 - 120 rpm
4. Time setting: 0 - 99 min
5. Maximum workpiece size for processing: φ180mm
6. Processing station; 4 groups
7. Automatic drip dispenser speed; D1-100
8. Automatic timing and buzzer alarm function
