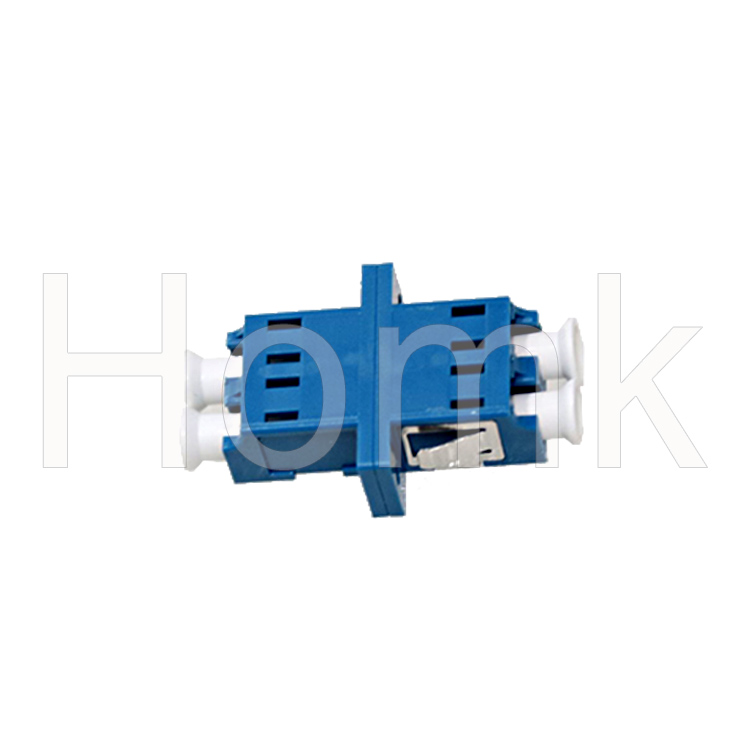

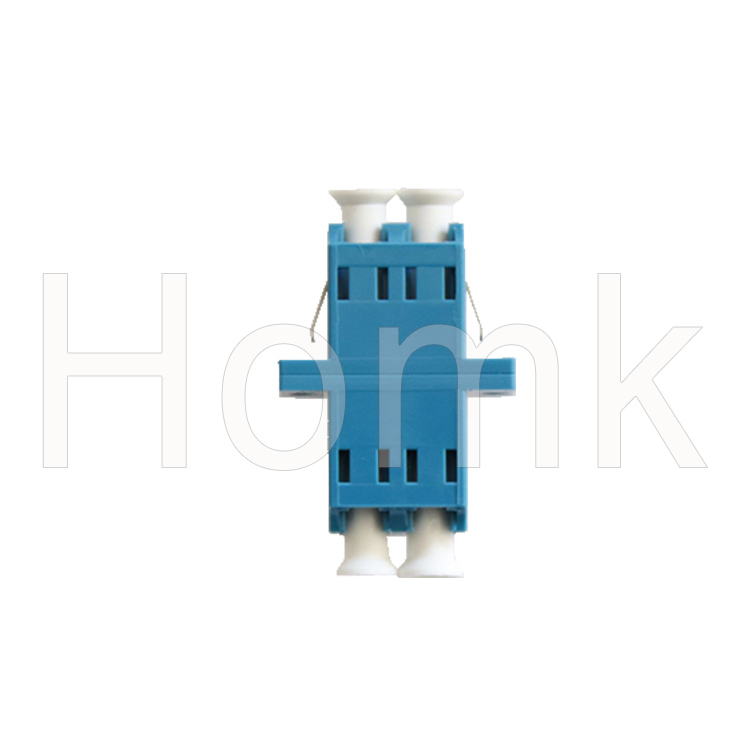

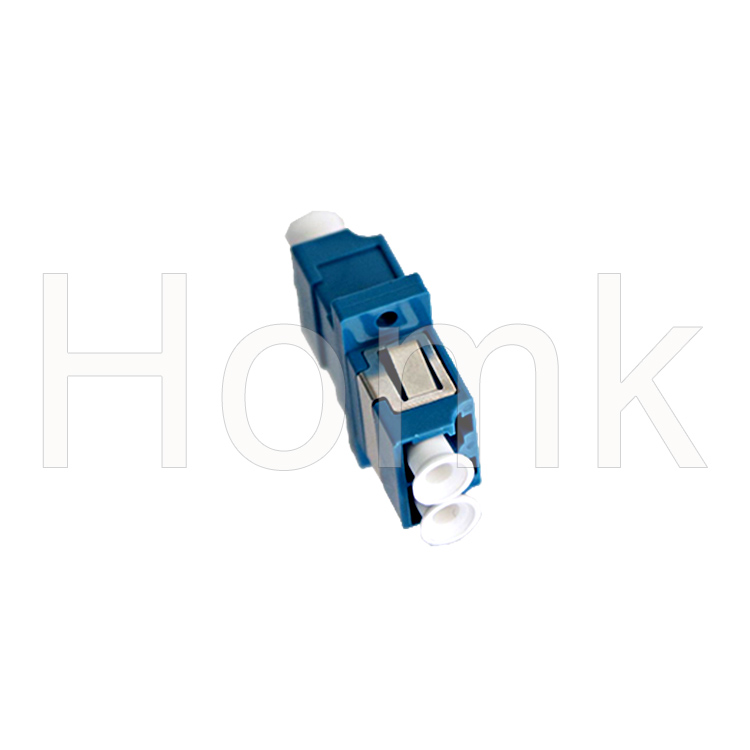

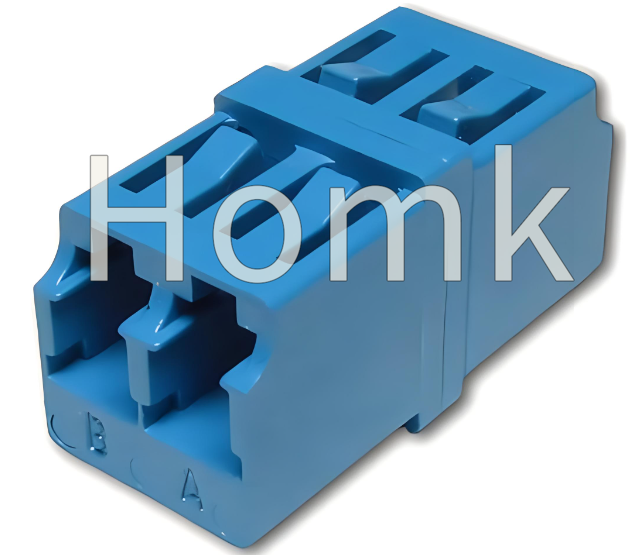

LC DX Fiber Optic Adapter
Features:
- Insertion loss < 0.3dB
- Return loss > 50dB (SM)
- High repeatability
- High environmental stability
- Various of connector and adapter types
Specifications:
Parameter | Unit | Description | ||
Insertion Loss (Typical) | dB | ≤0.2 | ||
Return Loss | dB | UPC≥45 | UPC≥50 | APC≥60 |
Mechanical endutance (500T) | dB | ≤0.2 | ||
Exchangeability | dB | ≤0.2 | ||
Operating Temperature | °C | -40~+75 | ||
Storage Temperature | °C | -40~+85 | ||
Relative Humidity | % | 95 | ||
