MPO Fiber Optic Color Sequence Tester

Products Category : Fiber polishing machine > MPO Production Equipments

Details

Product performance description

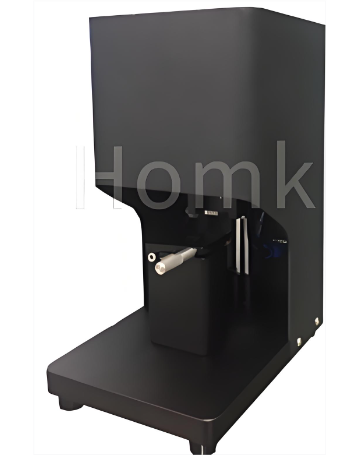

The MPO fiber optic color sequence tester is an intelligent device independently developed by HOMK TELECOM TECH Co., Ltd. for detecting the arrangement order of fibers in multi-fiber connectors. The device accurately and quickly identifies the current color sequence of "fiber pairing" and compares it with a preset standard sequence, identifying any discrepancies in color or order.

With simple software operation and a user-friendly interface, it replaces manual visual inspection, eliminating eye strain caused by prolonged observation while improving accuracy and consistency. It enables early detection and alerts to wiring errors during production, significantly reducing subsequent polarity issues.

The MPO fiber optic color sequence testing software requires compatible hardware to operate and can only be properly

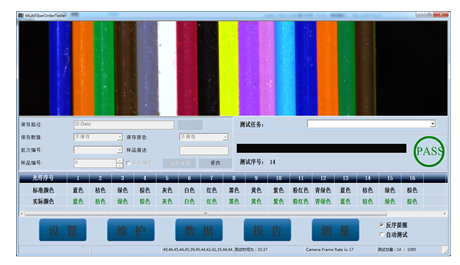

launched when connected to the corresponding hardware. The MPO fiber color sequence inspection software features a simple and intuitive interface that supports both Chinese and English, allowing users to switch languages at any time according to their needs and quickly master the operation. The software offers fast response speed and delivers stable, reliable test results.

Users simply place the sample into the fixture, and the software automatically displays the color sequence of the sample on the interface. It also compares the current measurement results against pre-set standards defined by the user as reference.
Features :

1. Stable and reliable test results, supporting direct testing on both front and back sides.

2. Extremely fast response time, requiring only 0.1 seconds per test.

3. Real-time monitoring without the need for external trigger switches.

4. Automatically identifies and alerts incorrect fiber positions, with fiber width testing capability to prevent errors such as too many or too few fibers.

5. Automatic voice prompts for test results.

6. Automatically generates test reports and data sheets in Excel format, facilitating file management and printing.
