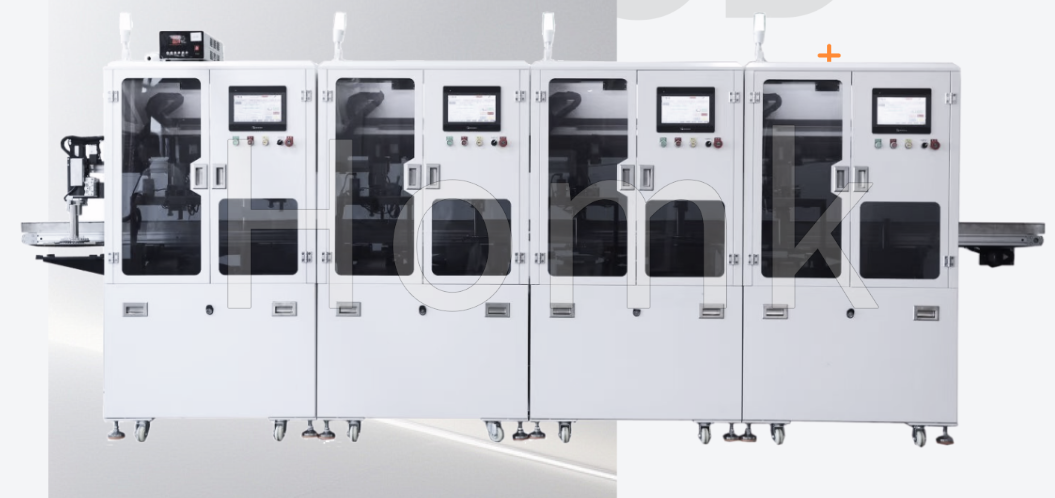

Full Automatic Fiber Polishing Line for Large Mass MPO Patch Cords(HK-88A PLUS)
Features/Benefits More Efficient and Compatible – The MPO-EPMOD can simultaneously perform multiple MP0 grinding processes (de-bonding, coarse grinding, fine grinding, fiber pulling, polishing), completing one MP0 ferrule connector in an average of 2.5 minutes. With a daily output of over 10,000 units (10 hours per day), it supports various compatible ferrule connectors such as AOC jumpers, MPO branch fan-out cables, MPO-MPO patch cords, optical modules, micro-connector assemblies, MT-MT, and MT-FA.

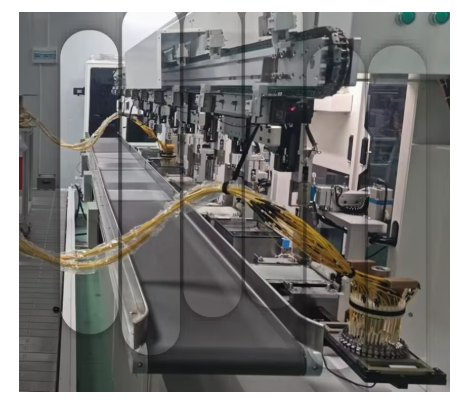

Simpler Operation – The MP0-EPMOD integrates a robotic arm platform, automatic cleaning system, and automated grinding platform, making the complex MP0 grinding process smarter and easier. Only two general operators are required per unit to handle product loading and unloading—no need for experienced MPO grinding technicians—enabling seamless execution of the entire grinding workflow.
Higher Product Consistency and Yield – The MPO-EPMOD employs a unique grinding path design that maximizes abrasive pad utilization while minimizing overlapping or intersecting grinding areas, significantly improving first-pass end-face yield.Equipped with precision sensors and closed-loop pressure control during grinding, combined with dedicated high-precision grinding fixtures, the system precisely controls material removal, effectively managing 3D surface geometry parameters of ferrules and fibers. Greater Flexibility – The MPO-EPMOD features a modular, brick-like design where each module connects via a single control cable, enabling flexible configuration of automated grinding lines based on specific processes. (A single-line setup combines individual units: four grinding steps require four units; five steps require five units.) Its open belt-loading structure allows compatibility with belts of any width without requiring machine modifications.

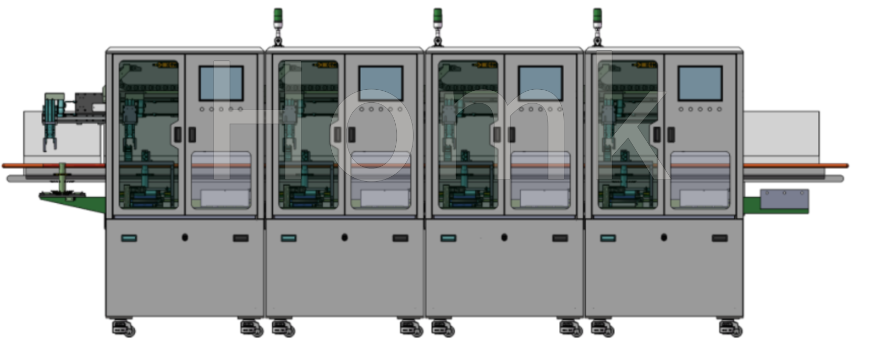

Machine Size

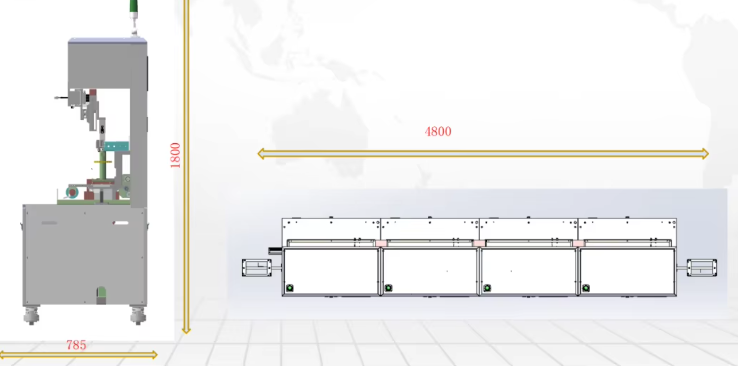

Weight | 420KGS*4 | size | 4.8M*0.8M*1.80M |
Polishing way | Orbit plus straight line | Air pressure | 0.4~0.6MPA |
Polishing film size | Width 140mm,length 20m | Rubber size | 151MM*161MM*5MM |
Power | 12KW | Brand | HOMK |

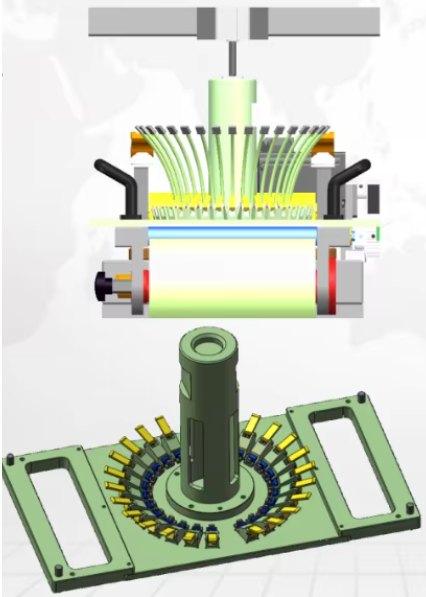

It breaks the traditional grinding machine's orbital motion combining rotation and self-rotation, adopting instead an orbital motion combined with linear movement. This method maximizes the utilization of abrasive sandpaper, ensures each fiber has a new grinding path, maintains consistent
material removal, and thus guarantees uniform yield for both end face and 3D polishing.
Clean Platform

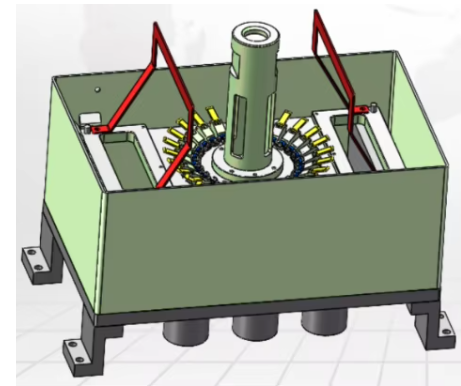

Advantage Five: The cleaning system employs ultrasonic vibration, mechanical rinsing, and air blowing. Each grinding module is equipped with an independent ultrasonic cleaning tank featuring automatic water filling and drainage. Cleaning time and cycles can be customized. During ultrasonic cleaning, the robotic arm shakes the fixture to enhance rinsing effectiveness, followed by
additional cleaning via air blowing.
