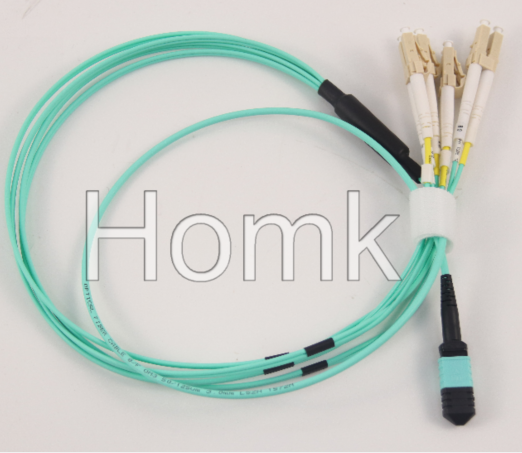

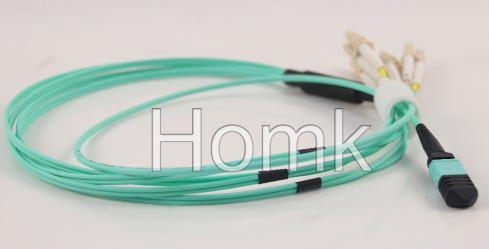

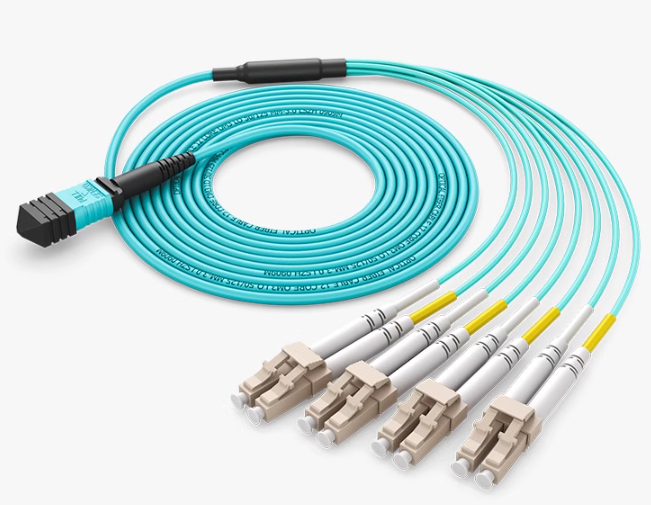

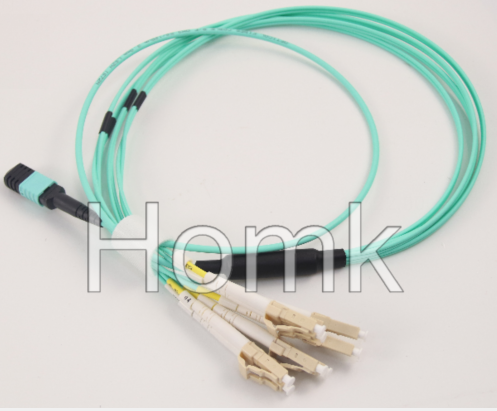

MPO-LC Fiber Optic Patch Cord
Our optical fiber patch cord is high return loss and low insertion loss ,Insertion loss of FC fiber patch cord is less than 0.2 dB,
Return loss of fiber LC patch cord is UPC more than 55dB ,APC is more than 60dB
Standard: IEC, Telcordia GR-326-CORE
Polish:PC/UPC/APC
Tensile strength: >10kg
Fiber cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC or LSZH cable is available,Fiber FC optic patch cord
with excellent changeability and repeatability
MPO/MTP | ||
Fiber type | Singlemode | Multimode |
Polishing type | Angle | Flat |
Insertion Loss | ≦0.75dB | ≦0.75dB |
Return Loss | ≧55dB | N/A |
Operating Temperature | -20°C ~ +70°C | |
Storage Temperature | -40°C ~ +85°C | |
Durability | 500 matings | |
