Multifiber Fiber Interferometer(HK-MT)

Details

HK-MT Multifiber Interferometer intelligent , efficient, stable and accurate

HK-MT is an automatic and non contact fiber endface interferometer for both multi-fiber and single fiber connectors. It can measure the geometry parameters of multi fiber connectors such as fiber height, core dip, and radius of curvature and is able to test single fiber connectors. Equipped with high performance software and hardware, it can display the surface of the connector in 3D images and generate the data and report automatically.

 HK-MT is an automatic and non contact fiber endface interferometer for both multi fiber and single fiber connectors. It can measure the geometry parameters of multi fiber connector such as fiber height, core dip, X and Y angel, radius of curvature with white light and measure geometry parameters of single fiber connector with red light. The software can display the surface of the connector in 3D image for a very short time, it need only 8s to test 12-core MT connector. The BINNA MT is intelligent , efficient, stable and accurate; it is very helpful in increase the quality of the product.

1.Single and Multi Fiber Measurement



HK-MT is able to measure up to 72 core MT multi fiber connector such as MPO and MTP and single fiber connector such as SC, LC, FC, E2000 by only one machine. Measuring APC connector is as easy as PC connector. The advanced software design makes that the changing the single & multi measurement by clicking mouse twice.

2. Ultra Fast Test Speed

HK-MT has extremely good software and hardware that makes test speed ultra fast. Only 8s is needed to measure 12 core MT connector. The HK-MT is one of the fastest fiber endface interferometer.





3 Auto Focus & Auto Calibratio

HK-MT has equipped advanced test software and several automatic functions, such as auto focus, auto calibration and so on. The automatic functions makes that the BINNA-MT has no need to adjust the hardware to measure various types of connectors.

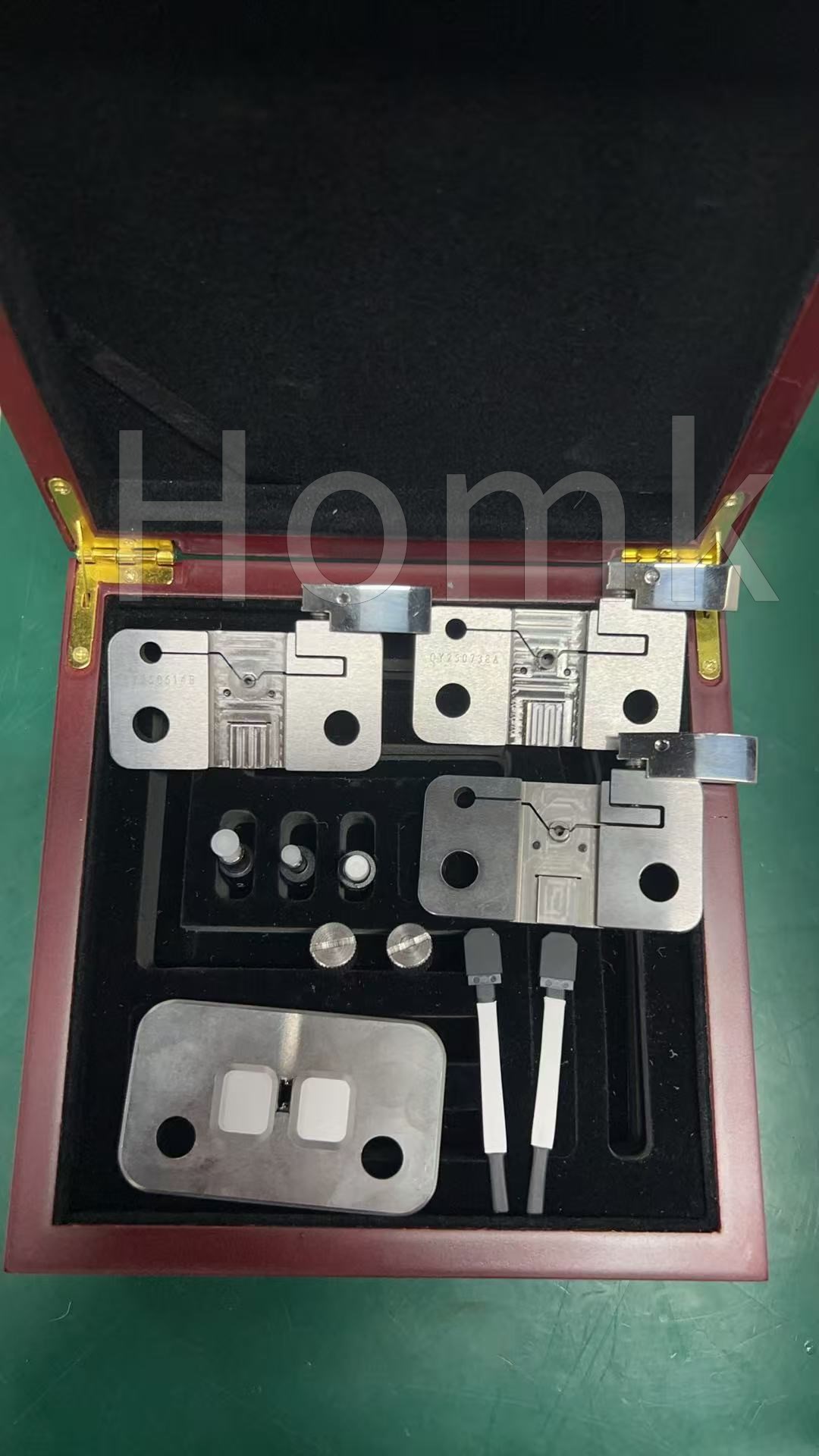

4. Precise Fixtures, High Repeatability and Reproducibility

HK-MT has equipped with several high precise fixtures to measure types of connectors. MT fixtures use PIN guide structure to ensure the accuracy and precision of test result.
The software has several patents-protected algorithms that makes the measurement more accurate, such as the algorithm designed for calculating CoreDip makes the result more sensible and reliable. The software has newest IEC standards to judge the test result in default that makes the test easy and precise.



2.5mm Universal Fixture1.25mm Universal Fixture

2.5mm universal fixture is able to measure 2.5mm connector and ferrule such as SC, FC, ST, E2000.
1.25mm universal fixture is able to measure 1.25mm connector and ferrule such as LC,MU.
MT Female Ferrule FixtureMT Female Connector Fixture

MT ferrule fixture: is able to measure female type MT ferrules such as MTP, MPO
MT female con-nector fixture is able to measure female type MT connector such as MTP, MPO.
MT Male Connector Fixture(Optional)MTRJ Female Connector Fixture(Optional)

MT male con-nector fixture is able to measure male type MT connector such as MTP, MPO
MTRJ female con-nector fixture is able to measure female type MTRJ connector.









5 Easy Operation

HK- MT is very easy to operate. Changing fixtures need only remove and install two screws by hand due to universal fixture design. Only a few clicks on the main interface is needed to change or customize measurement profiles. BINNA-MT can increase the test efficiency and save the time of training; it is the best friend in manufacturing.





6.Stable Data Link

HK-MT has improved the data connection, it uses USB cables with lock structure and ensure the stable data link during the measurement.











7 High Resolution 3D Image

The software can rebuild the surface with high resolution 3D image after each measurement.






8 Auto Generate Data and Report

The data and report is generated by the software automatically in each measurement. The data and report are generated in Excel format and has data processing functions that is very helpful in data analysis.






9 Bare Ferrule Measurement

HK-MT is not only able to measure the geometry parameters of the connectors, but also can measure the geometry parameters of the bare ferrules.













10 Cleave Angle Measurement

HK-MT is able to measure the cleaving angle of bare fiber.











11 Flat Polish Measurement

HK-MT is able to measure ROC(radius of curvature) , Fiber Height and Angle of flat polishing connector.









Features
1. High test speed: it needs 8s to test 12-core MT connector.
2. Auto calibration: no need to adjust by hand when calibrate the instrument
3. Auto focus: full automatic measurement
4. White light source and red light source equipped, can test both multi fiber connector and single fiber connector
5. Easy PC APC conversion: no need tools or change fixtures
6. Wide sight range: can measure 72-core connector in the test
7. Fast 3D rendering
8. Auto generate data and report in excel format

Specifications
Item
Range
Repeatability*
Reproducibility*
ROC(mm)
3 to flat
1%
3%
Fiber Height(um)
Up to 8
0.015
0.025
X, Y Angle (°)
0(PC) or 8(APC)
0.01
0.02
Test Speed (s)
8s for 12 core MT connector (exclude auto focus)
Focus Speed (s)
5s
Light Source
White light LED+ Red light LED
Weight
5.5kg(main frame )
Volume
L30*W12.5*H10(cm)
