Outdoor /Indoor Cable

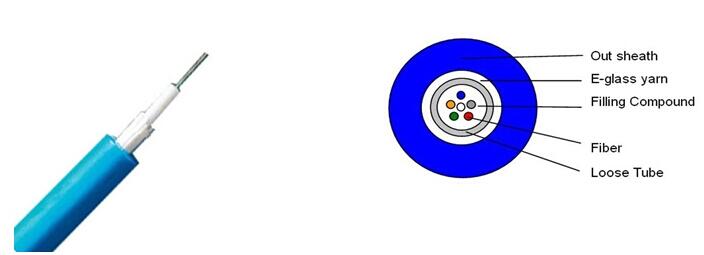

Product Name：Central Loose tube In/out Optical Cable
Model：GJFXTKV
Application:
☆.Adopted to indoor or outdoor distribution.
☆.Small cable size , lightweight.
☆.With excellent waterproofing performance.
Characteristics:
☆.Filler protect bube fiber .
☆.E-glass member potentiate.
☆.Fiber Count:2~12
| Technical Parameters: | |||||||||
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 6.0 | 45 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 4 | 6.0 | 45 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 6 | 6.0 | 45 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 8 | 6.0 | 45 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 10 | 6.0 | 45 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 12 | 6.0 | 45 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
