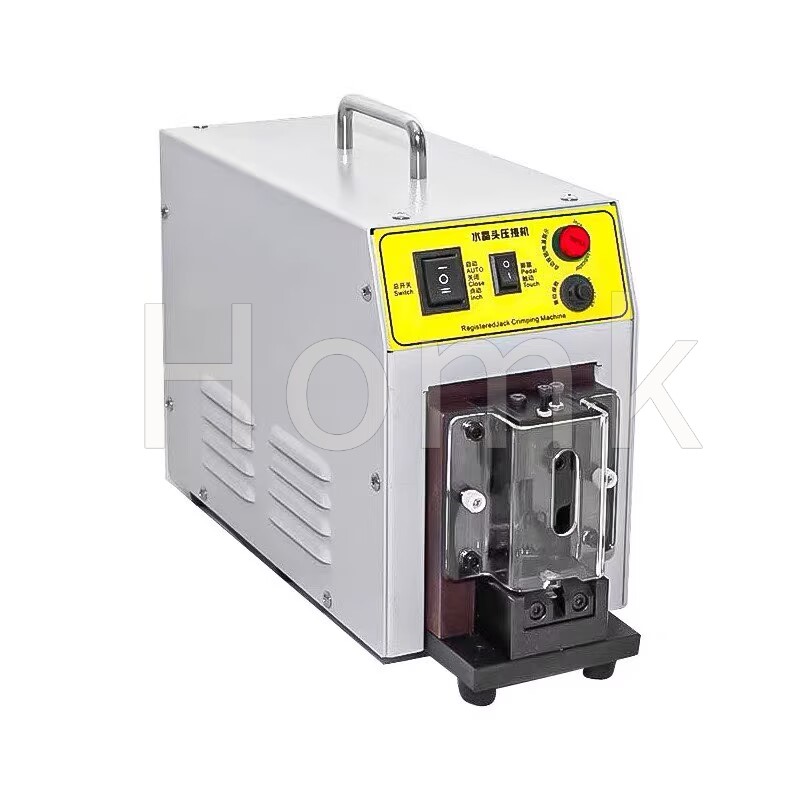

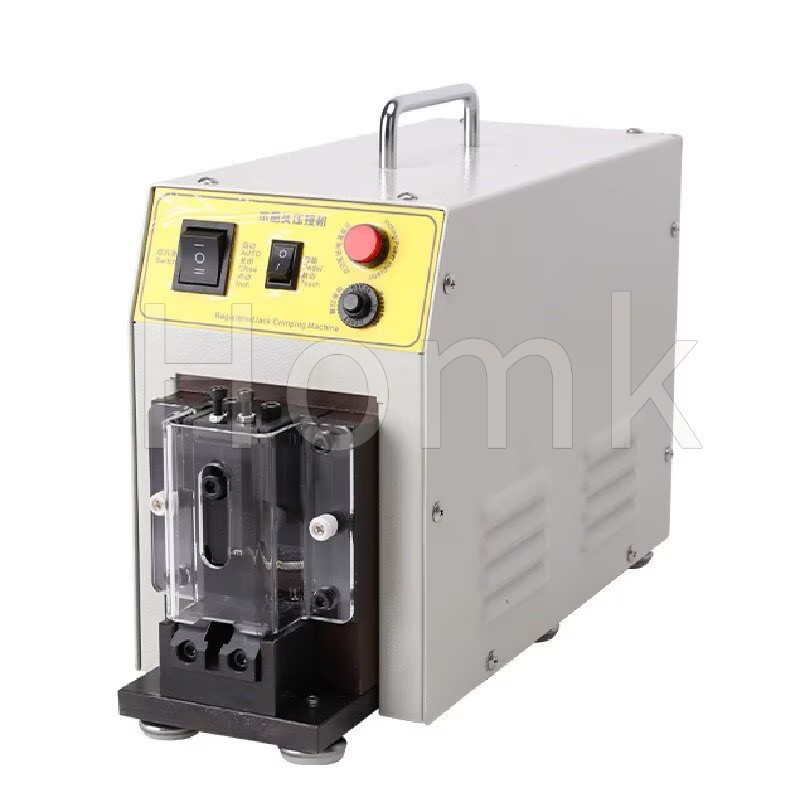

-Network Connector Registered Jack Crimping Machine
After receiving equipment, unpack the box and put the equipment on a stable work surface! Take out the power cord, pedal switch and relevant accessories.
1.Plug the power cord and the pedal switch into the corresponding jacks respectively, then tighten the nuts to fix them (as shown in Figure 1).
2. Plug the GB three-pin plug of power cord into a AC220V power outlet (as shown in Figure 2).
The connectors of power cord and pedal switch adopt the fool-proof design. The black wire with three-core connector is the power cord, and the gray wire with two-core connector is the connection of pedal switch.
Model | HK-03 |
Power Supply | AC220V/50/60HZ |
Power Consumption | 0.1/H(no-load） |
Crimping Force | 200KG |
Operation Mode | Pedal Switch, Single Action / Ejector Pin, Touch Switch |

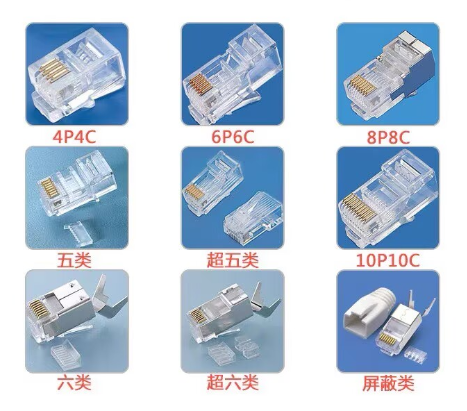

Applicable Jacks | 2-10P（different moulds for different jacks） |
Motor Power | 120W |
Dimension | 417*216*330MM |
Weight | 15KG |
