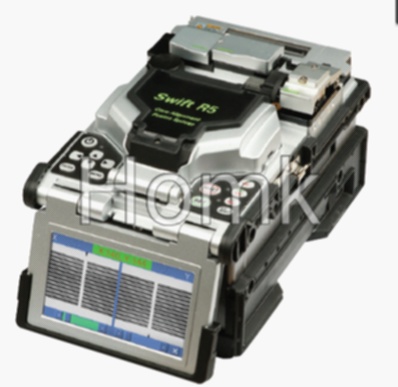

Swift R5 fusion splicer
The Swift R5’s simple and user-friendly design enables users to splice quickly and conveniently throughout the 5 processes; stripping, cleaning, cleaving, splicing & sleeving. (ALLINONE) One more thing, Swift R5’s thermal automatic stripper leaves no scratches while a manual stripper scratches on fiber very much. Also, there is no feeling of fatigue that occurs after using manual strippers even several times. Swift R5 is a way on future splicers.
| Category | Description | |
| Fiber alignment | Fixed V-Groove(Clad to Clad) | |
| Applicable type of fibers | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655) | |
| Fiber count | Single fiber, 2~12 fiber | |
| Applicable fiber dimensions | Single: Cladding diameter 125um, Coating diameter 250, 900um | |
| Ribbon: Cladding diameter 125um, Ribbon fiber thickness 0.27 to 0.32mm | ||
| Fiber setting and cleaved length | 8mm | |
| Splicing modes | Splice mode: 100, Heat mode: 50 | |
| Typical Splice Loss | SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB | |
| Return Loss | > 60dB | |
| Splicing Time | Typical 20sec with standard SM(ITU-T G.652) | |
| Splice loss estimate | Available | |
| Sleeve heating time | 30sec, 50sec | |
| Applicable protection sleeve | 40, 60mm(fiber) | |
| Storage of splice result | The last 10,000 results to be stored in the internal memory. (Image 10,000 results) | |
| Tension test | 2N / 4,4N(Option) | |
| Operating condition | Altitude: 5,000m above sea level, Temperature: -10℃~50℃,Humidity: 0~95%, | |
| Wind: 15m/s, non-condensing, dust proof, water proof, shock proof | ||
| Storage condition | Temperature: -40℃~80℃, Humidity: 0~95% | |
| Dimension | 142(W)x225(L)x132(H)mm(Including rubber) | |
| Weight | 2.5kg(Including battery 3.2kg) | |
| Viewing method and display | Two CMOS cameras and 4.3-inch color LCD monitor with touch panel | |
| Fiber view and magnification | 50X | |
| Power supply | DC Lithium polymer battery(DC 14.8V, 8400mAh), 100~240V AC Adapter | |
| No. of splice cycles with battery | 320cycle | |
| Electrode life | More than 1,000 times | |
| Terminals | USB, External power(DC 12V Available for car cigar jack) | |
| STANDARD PACKAGE | ||
| Category | Model | Q’ty |
| Arc Fusion Splicer | R5 | 1 |
| AC Adapter | F1-1 | 1 |
| USB Cable | - | 1 |
| Upgrade Cable | - | 1 |
| Sleeve Loader | S312 | 2 |
| Spare Electrode | EI-22 | 1 pair |
| Battery Pack | S513 | 1 |
| Colling Tray | CT-03(60mm) | 1 |
| Hex Wrench | - | 3 |
| Fiber Holder | H5-Series | 1 pair |
| Moving Strap | - | 1 |
| Tool Box | - | 1 |
| Brush | - | 1 |
| Pinset | - | 1 |
| User Guide CD | - | 1 |
| Data Sync CD | - | 1 |
| User Manual | - | 1 |
| Silica Gel 20g | - | 1 |
| Calibration Guide Manual | - | 1 |
| HC-Key | - | 1 |
| Shoulder Belt | - | 1 |
| Carrying Case | Hard Case | 1 |
| OPTION PACKAGE | ||
| Category | Model | |
| Battery Pack | S513 | |
| Fiber Cleaver | BI-05 | |
| Electrode | EI-22 | |
| Fiber Holder | H5-12, H5-10, H5-8, H5-6, H5-4, H5-2, H5-250, H5-900, H5-IN, H5-2.5 | |
| Sleeve | R-F40(40mm) | |
| Sleeving Clamp | SC-01 | |
| RCA Cable | 2.5m Black | |
| External Power | DC 12V Available for car cigar jack | |
