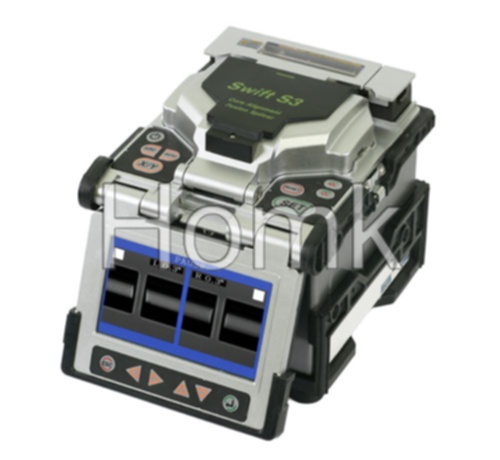

Swift S3 fusion splicer
Swift S3 is a typical fusion splicer of core-to-core alignment for every splicing purposed like mediumand long range optical circuit, LAN, CATV, FTTx with least loss. With compact, light, rugged design andlong-life battery, it delivers high precision performance. Furthermore, 4.3-inch color monitor with touch screen offers users more convenient and efficient working process.
| SPECIFICATIONS | ||
| Category | Description | |
| Fiber alignment | IPAAS core to core alignment(Image pattern analysis alignment system) | |
| Applicable type of fibers | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), GI EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657 | |
| Fiber count | Single fiber | |
| Applicable fiber dimensions | Cladding diameter: 80 ~ 15um, Coating diameter: 100 ~ 1000um | |
| Fiber setting and cleaved length | 250um: 8~16mm, 900um: 16mm(Application Holder: 8mm) | |
| Splicing modes | Splice mode: 100, Heat mode: 50 | |
| Typical Splice Loss | SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB | |
| Return Loss | > 60dB | |
| Splicing Time | Typical 7sec | |
| Splice loss estimate | Available | |
| Sleeve heating time | 28sec (Dual Sleeve Heating) | |
| Applicable protection sleeve | 40mm, 60mm(fiber), 28mm or 32mm(connector) | |
| Storage of splice result | The last 10,000 results to be stored in the internal memory. | |
| (Image 10,000 results) | ||
| Tension test | 2N / 4.4N(Option) | |
| Operating condition | Altitude: 0~5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof | |
| Storage condition | Temperature: -40℃~80℃, Humidity: 0~95% | |
| Dimension | 142(W) x163(L) x146(H)mm(Including rubber) | |
| Weight | 2.0kg(Including battery 2.5kg) | |
| Viewing method and display | Two CMOS cameras and 4.3-inch color LCD monitor with touch screen | |
| Fiber view and magnification | X or Y view: 300X, X and Y view: 300X, 187X (Zoom 700X) | |
| Power supply | DC Lithium polymer battery(DC 14.8V, 6000mAh), 100~240V AC Adapter | |
| No. of splice cycles with battery | 300cycle | |
| Electrode life | More than 3,000 times | |
| Terminals | USB, RCA, External Power(DC 12V Available for car cigar jack) | |
| STANDARD PACKAGE | ||
| Category | Model | Q’ty |
| Arc Fusion Splicer | S3 | 1 |
| AC Adapter | F1-1 | 1 |
| USB Cable | - | 1 |
| Upgrade Cable | - | 1 |
| Sleeve Loader | S312 | 2 |
| Spare Electrode | EI-21 | 1 pair |
| Battery Pack | S313 | 1 |
| Colling Tray | CT-03(60mm) | 1 |
| Manual Stripper | CF-02 | 1 |
| Hex Wrench | - | 1 |
| Fiber Cleaver | CI-03A | 1 |
| Moving Strap | - | 1 |
| Tool Box | - | 1 |
| Brush | - | 1 |
| Alcohol Dispenser | - | 1 |
| User Guide CD | - | 1 |
| Data Sync CD | - | 1 |
| User Manual | - | 1 |
| Silica Gel 20g | - | 1 |
| Calibration Guide Manual | - | 1 |
| HC-Key | - | 1 |
| Shoulder Belt | - | 1 |
| Carrying Case | Hard Case | 1 |
| OPTION PACKAGE | ||
| Category | Model | |
| Battery Pack | S313 | |
| Fiber Cleaver | CS-03A | |
| Cleaver Blade | BI-05 | |
| Electrode | EI-21 | |
| Fiber Holder | HS-250, HS-900, HS-2.5, HS-IN, HS-SC, HS-LC, HS-ST, LS-900 | |
| Sleeve | S-160(60mm), S-140(40mm) | |
| Sleeving Clamp | SC-01 | |
| SOC Connector | SC, LC, FC, ST (Refer to FTTx Solution catalogue) | |
| RCA Cable | 2.5m Black | |
| External Power | DC 12V Available for car cigar jack | |
